Din 43650 male circular base form a waterproof solenoid valve connector socket

Brief Information:

  • Model: Solenoid valve connector base
  • Gender: Male
  • Available numbers of contacts: 2+PE/3+PE
  • Contacts termination: Solder
  • Form: A type hexagon base
  • Version: Connector socket straight
down load to pdf

Din 43650 form A connector base technical data:

Model Number: Din43650 male connector
Contacts poles: 2+PE  3+PE
Form: A Type
Gender: Male
IP rating: IP65
Termination: Solder
Standard: DIN EN175301-830
Temperature range: -25°C~+100°C
Locking method: Central bolt
Contact body material: PA (UL94 HB)
Rated voltage: 250V
Rated current: 10A
Contact resistance: ≤5MΩ
Contact material: CuSn (bronze)
Contact plating: Sn（tin）
Screw size: M3*32
Mechanical operation: > 50 Mating cycles
Customs tariff number: 85369010
Pollution degree: III
EMC shielding: Unshielded

Description:

Din43650 solenoid valve connector form A Solenoid valve connectors are available with high or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. The waterproof protection class fromIP 40 to 67 with self-connectable and moulded versions. For visual status indication, many models are also available as LED types. Products can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.
  • 1Type A according to industrial standard
  • 1Complies with DIN EN 175301-803
  • 1Version with high housing available
  • 1Appliance sockets and plugs
  • 1PUR-moulded sockets (IP67)
  • 1Available with LED indicators
  • 12+PE 3+PE are available

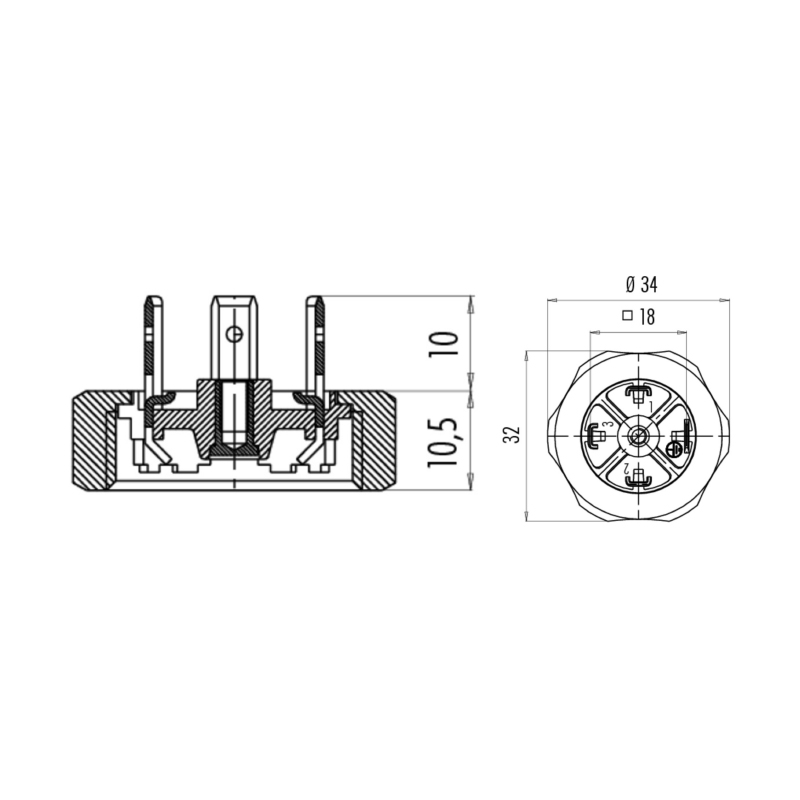

  • Din 43650 form A connector base brief drawing
  • Assembly instruction

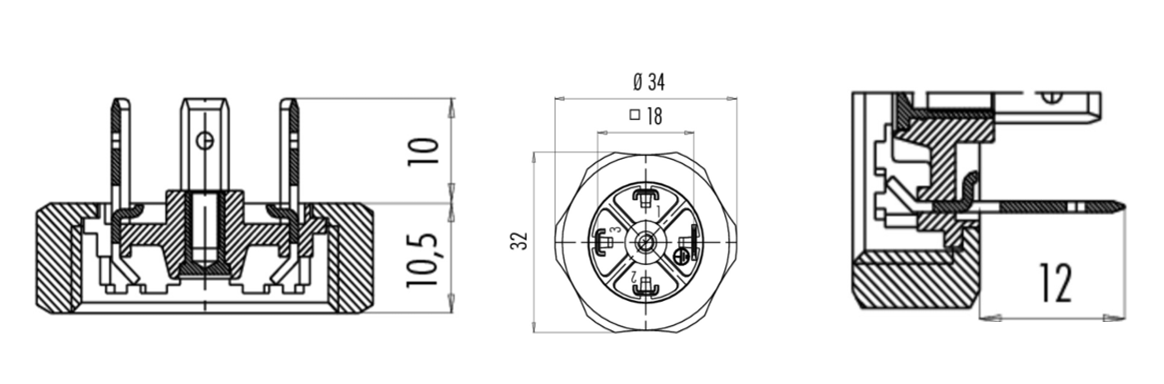

  • Din 43650 form A connector base brief drawing
  • Assembly instruction
