Product Details Display

Description:

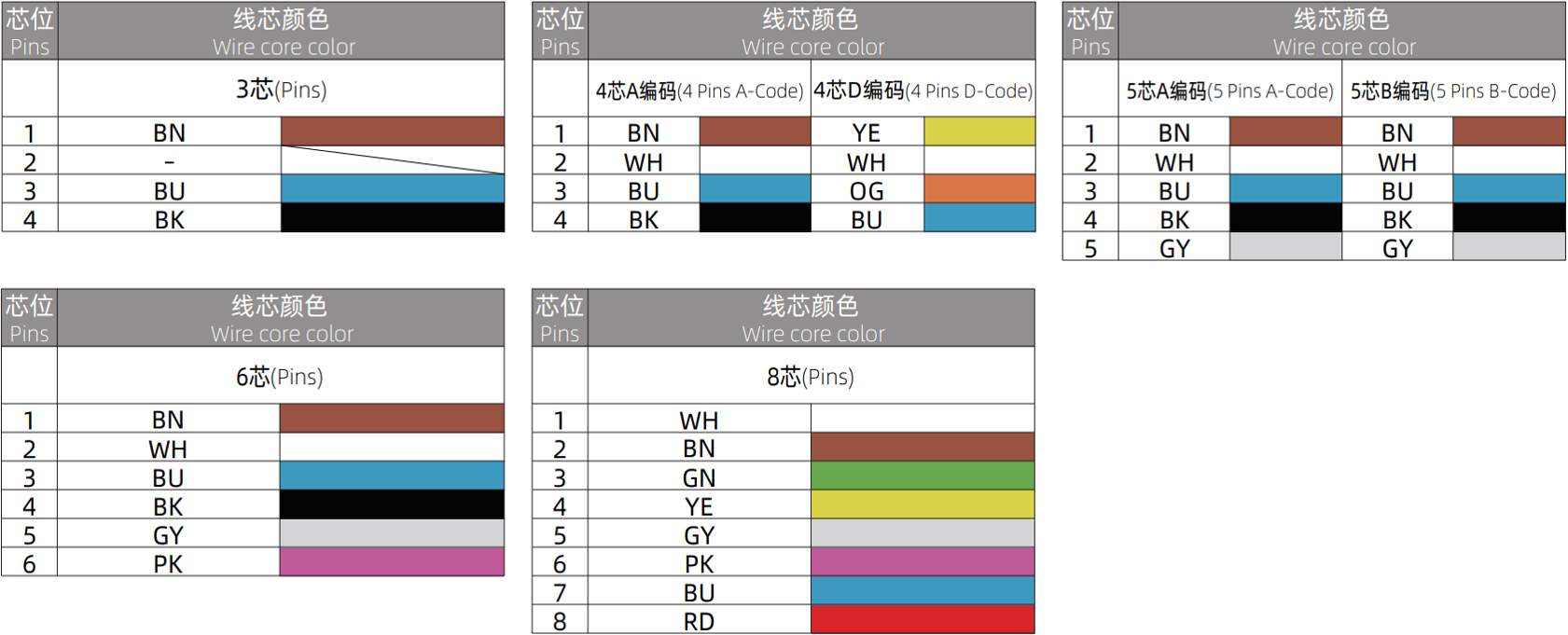

• 1Number of cores: Provide 3 core, 4 core, 5 core, 6 core, 8 core and other core configurations to meet different signal and data transmission needs;

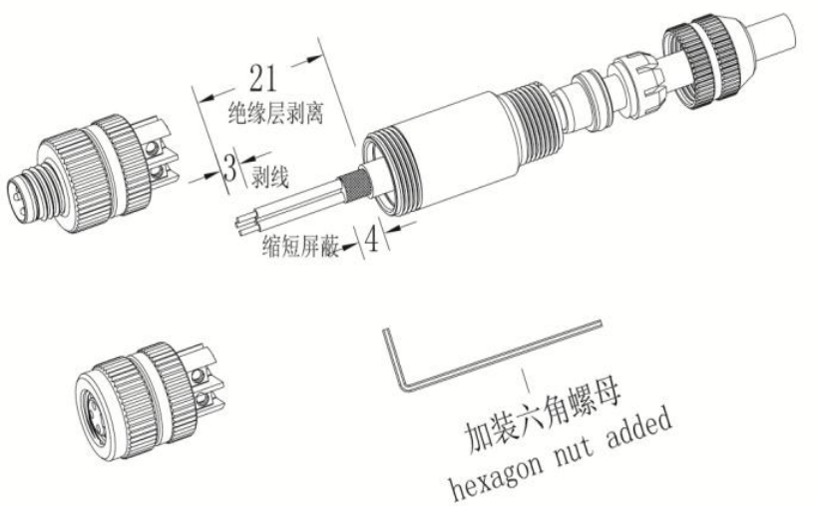

• 1Welded and locking screw types: M8 connectors are available in both solder and locking screw mounting modes. The welded type is usually used for permanent connections, while the lock screw type facilitates field installation and maintenance;
• 1IP67 Waterproof rating: Many M8 connectors are designed with an IP67 water and dust rating, which means they are able to prevent dust from entering and can last up to 30 minutes in water up to a meter deep without damage;
• 1Straight head and elbow: Straight head connectors are the most common and provide a straight line connection. Elbow connectors provide angular connections for situations where space is limited or the direction of the cable needs to be changed;
• 1Male versus female: Male connectors are usually used on the active end and can be plugged into the female connector. The female connector has a socket and can accept the insertion of the male connector;

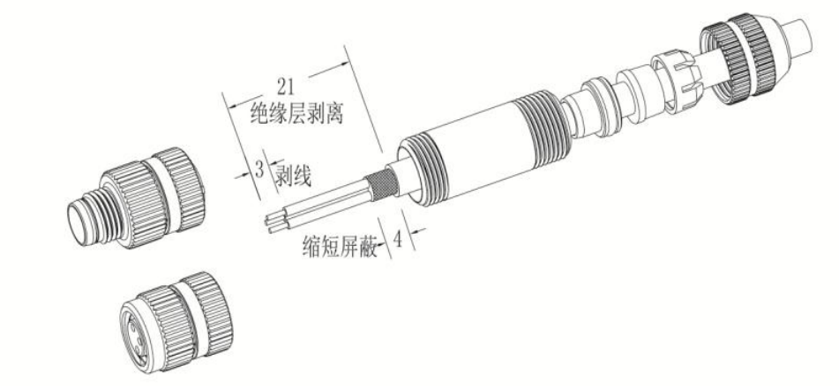

• 1Field installation: Field-installable M8 connectors allow users to assemble at the final installation site, which helps reduce the need for prefabricated cables, saving time and cost;
• 1With shielding: M8 connector models also offer shielding type, which is important to prevent signal interference in complex electromagnetic environments.
