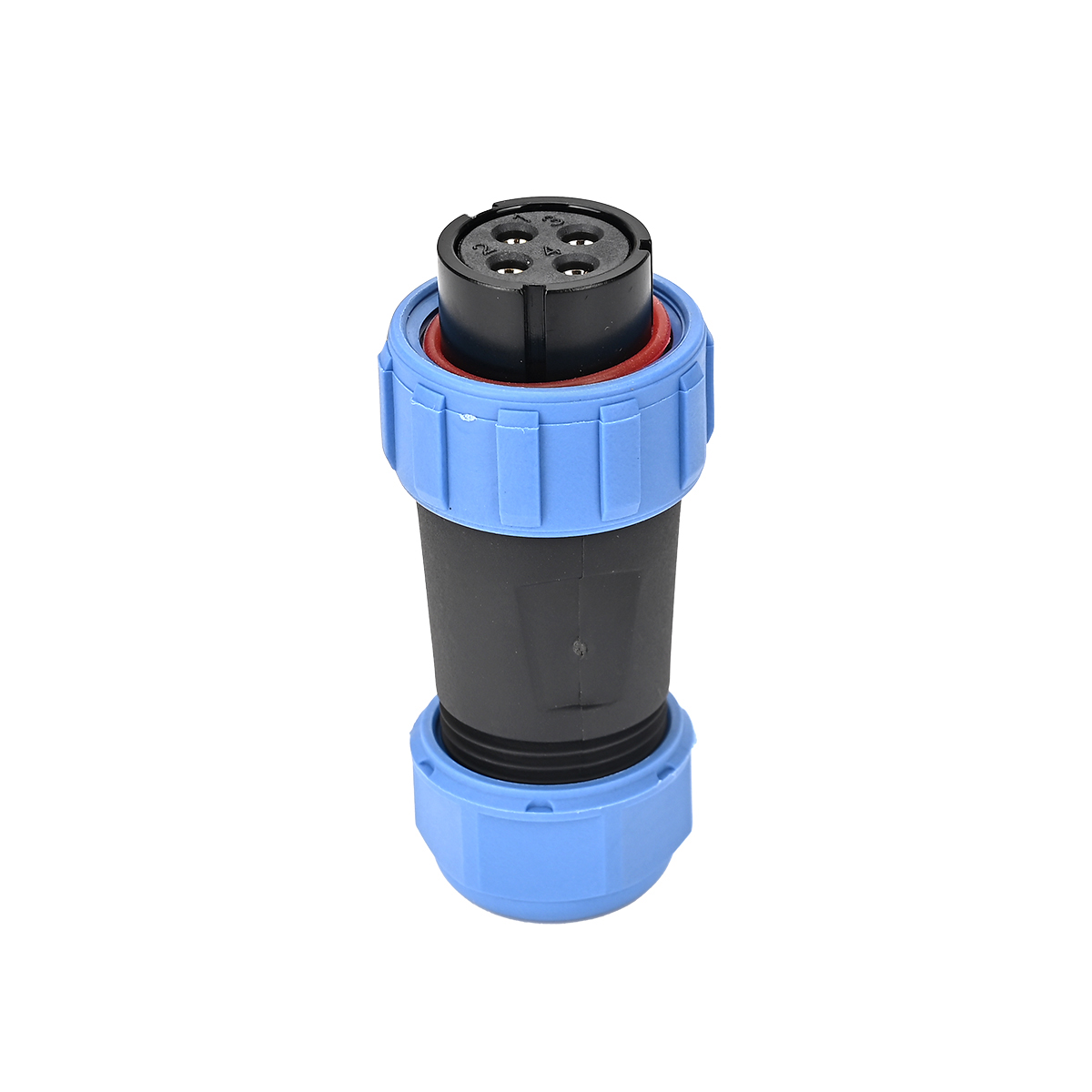

SP2910 female 2-26pin plastic weipu round high power waterproof plug electrical connectors

Brief Information:

  • Model: SP2910-S
  • Gender: Female
  • Available numbers of contacts: 2pin 3pin 4pin 7pin 8pin 9pin 10pin 10pinB 12pin 16pin 17pin 20pin 24pin 26pin
  • Termination: Soldering & Crimp & Screw
  • Match with: SP2911-P & SP2912-P & SP2913-P
down load to pdf

SP2910 female connector technical data

Contacts poles: 2pin 3pin 4pin 7pin 8pin 9pin 10pin 12pin 16pin 17pin 20pin 24pin 26pin
Contact arrangement:
Rated current: 50A 50A 25A 25A 25A 4*25A/5*5A 25A 10A 10A 10A 5A 5A 5A
Rated voltage: 500V 500V 500V 500V 500V 500V 500V 500V 500V 500V 400V 400V 400V
Contact diameter: 3.5mm 3.5mm 2.5mm 2.5mm 2.5mm Φ2.5×4 Φ1×5 2.5mm 1.5mm 1.5mm 1.5mm 1.0mm 1.0mm 1.0mm
Contact resistance: ≤0.5mΩ ≤0.5mΩ ≤1mΩ ≤1mΩ ≤1mΩ ≤4*1/5*5mΩ ≤1mΩ ≤2.5mΩ ≤2.5mΩ ≤2.5mΩ ≤5mΩ ≤5mΩ ≤5mΩ
Wire gauge(mm²/AWG): ≤6/10 ≤6/10 ≤1.5/15 ≤1.5/15 ≤1.5/15 / ≤1.5/15 / / / / / /
Contacts termination: Soldering & Crimp & Screw
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PPS
Orientation: Straight 180°
Insert material: PPS
Shell material: PC, PA66
Fire resistance: V-0
Contact material: Brass copper plating

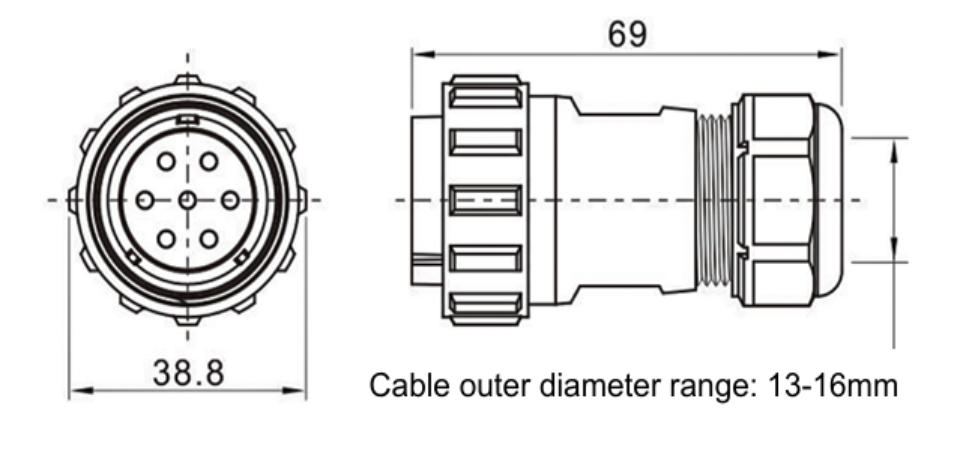

Cable diameter range: 13-16MM
Mechanical operation： ＞500 times
Temperature range: -40°C~+85°C
Coupline: Threaded coupline
Insulation resistance: 2000 MΩ



Description:

SP series connectors(SP11 SP13 SP17 SP21 SP29) are widely used in various electrical circuits and plays the role ofconnecting or disconnecting circuits have the following features:
  • 1The shell adopts high quality nylon materialstrong pressure resistance,even when working underwater is not easy to deformation water leakage, safe and durable
  • 1SP series connectors are designed to work in humid or watery environments and can prevent moisture from entering the interior of the connector. This means they are protected from dust and general water impact
  • 1High-quality metal contacts ensure good conductivity and low resistance, thereby reducing signal loss and energy loss;
  • 1Durable nylon shell resists physical damage and provides adequate support to protect internal contact elements;
  • 1SP series waterproof connectors can work in a wide temperature range and are suitable for various outdoor applications, such as navigation, automobiles, industrial control, lighting systems, etc;
  • 1Supports a variety of termination methods, including welding, screw crimping, etc., to meet the needs of different application scenarios.
  • 1SP series connectors are often designed to maintain stable electrical performance under harsh conditions such as vibration, shock and pressure changes
