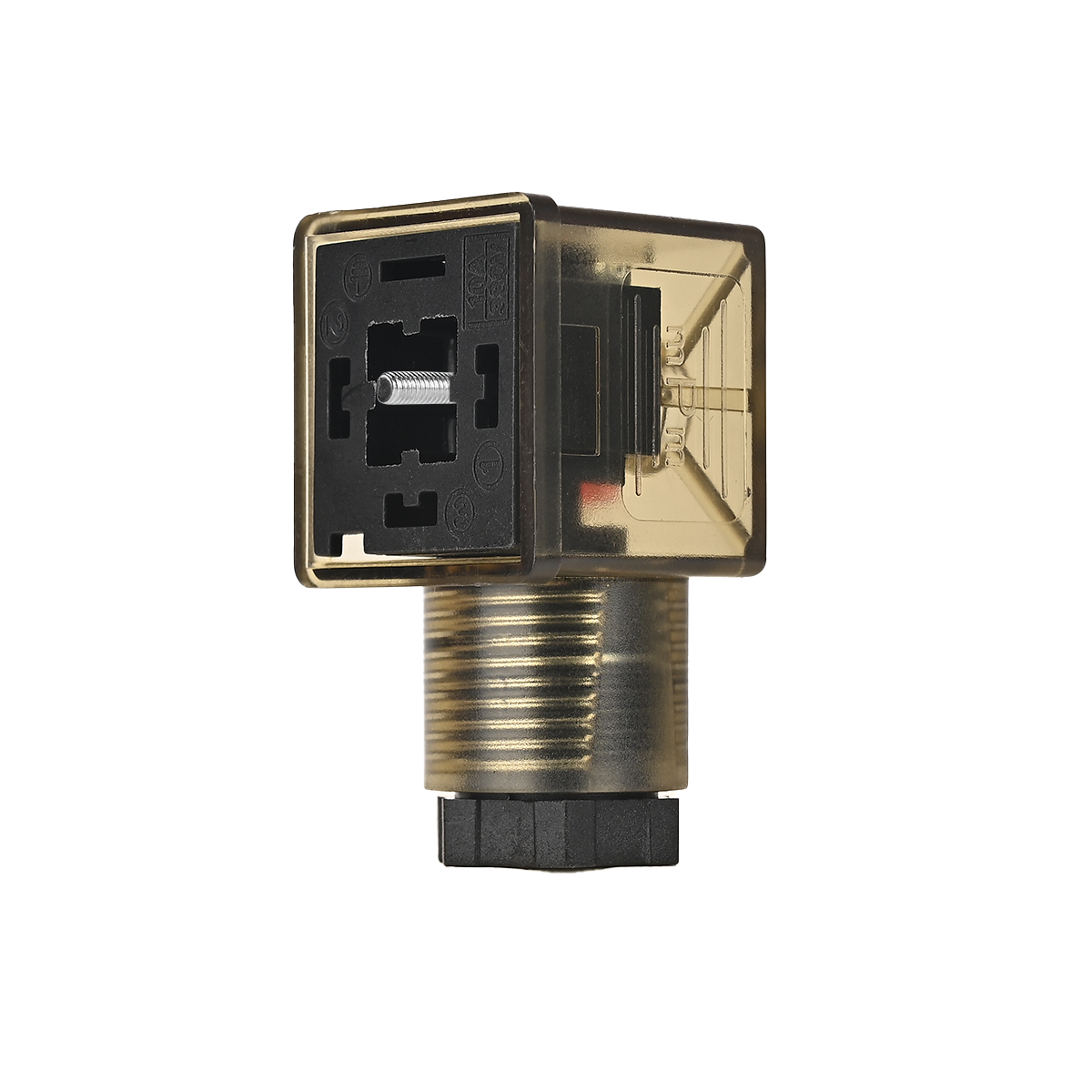

  • DIN 43650 A -LED
  • 图片1
  • 图片2
  • 图片3

Din 43650 type a female 2+PE 3+PE Pneumatic coil mpm solenoid plug for automation

Brief Information:

  • Model: Solenoid valve connector plug
  • Gender: Female
  • Available numbers of contacts: 2+PE 3+PE
  • Contacts termination: Screw clamp
  • Form: A
  • Version: Connector socket straight
down load to pdf

Din 43650 form A connector technical data:

Model Number: Din 43650
Contacts poles: 2+PE  3+PE
Form: A Type
Housing material: PA+GF
Gender: Female
IP rating: IP65
Standard: DIN EN175301-830-A
Contact body material: PA (UL94 HB)
Contact resistance: ≤5MΩ
Rated voltage: AC 250V/DC 24V
Rated current: 10A
LED: As required
Contact material: CuSn (bronze)
Contact plating: Sn（tin）
Locking method: Central bolt
Termination: Screw clamp
Screw size: M3*28
Cable outlet: PG7 for 4-6mm                           PG9 for 6-8mm
Temperature range: -30°C~+120°C
Mechanical operation: > 50 Mating cycles
Customs tariff number: 85369010
Pollution degree: III
EMC shielding: Unshielded

Description:

Din43650 solenoid valve connector form A Solenoid valve connectors are available with high or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. The waterproof protection class fromIP 40 to 67 with self-connectable and moulded versions. For visual status indication, many models are also available as LED types. Products can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.
  • 1Type A according to industrial standard
  • 1Complies with DIN EN 175301-803
  • 1Version with high housing available
  • 1Appliance sockets and plugs
  • 1PUR-moulded sockets (IP67)
  • 1Available with LED indicators
  • 12+PE 3+PE are available

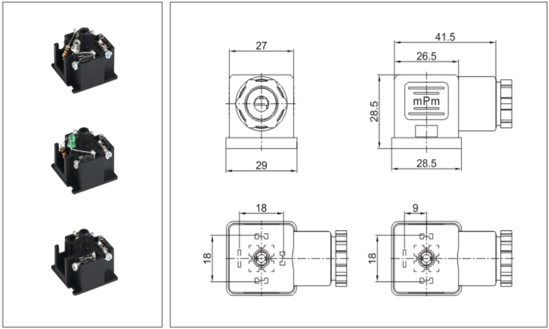

  • Din 43650 form A connector brief drawing

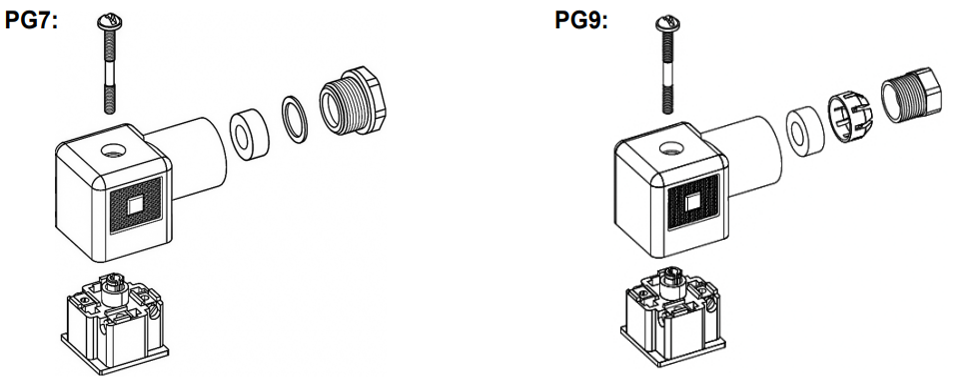

  • Assembly instruction

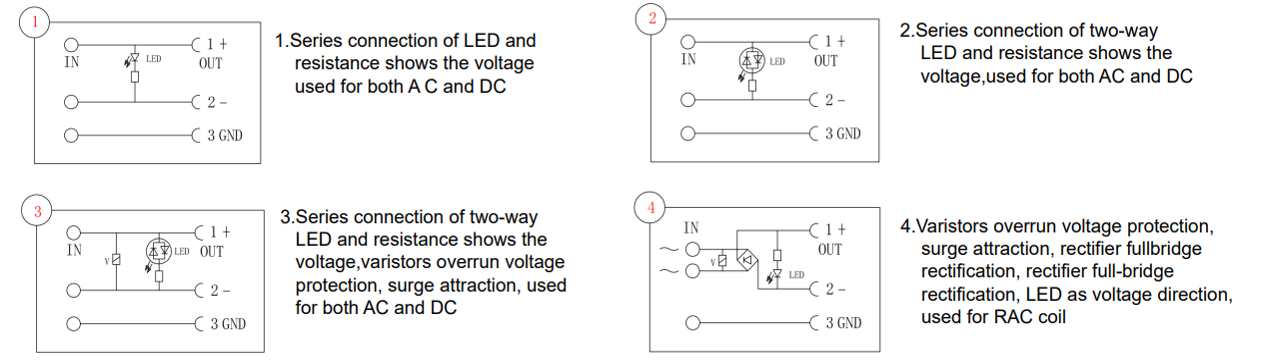

  • Solenoid valve connector electrical wiring description
  • Din 43650 form A connector brief drawing
  • Assembly instruction
  • Solenoid valve connector electrical wiring description
