Product Description

Functionally Engineered for Compact Sensor Connections
Our M5 connectors are purpose-built for miniature sensor applications and environments where space optimization is critical. Target users such as industrial engineers and system integrators will find these solutions essential for secure and precise wiring within constrained assemblies. As a leading electrical connector manufacturer, we cater to applications requiring robust miniature connectors that combine compactness with reliable performance. The product is designed for straightforward integration into existing systems demanding quality sensor connectivity.

Technical Specifications Ensuring High Reliability

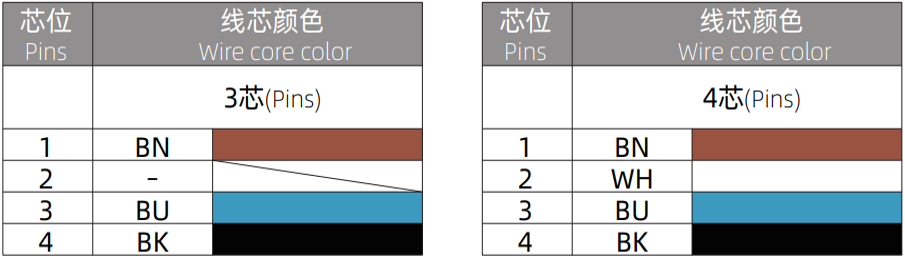

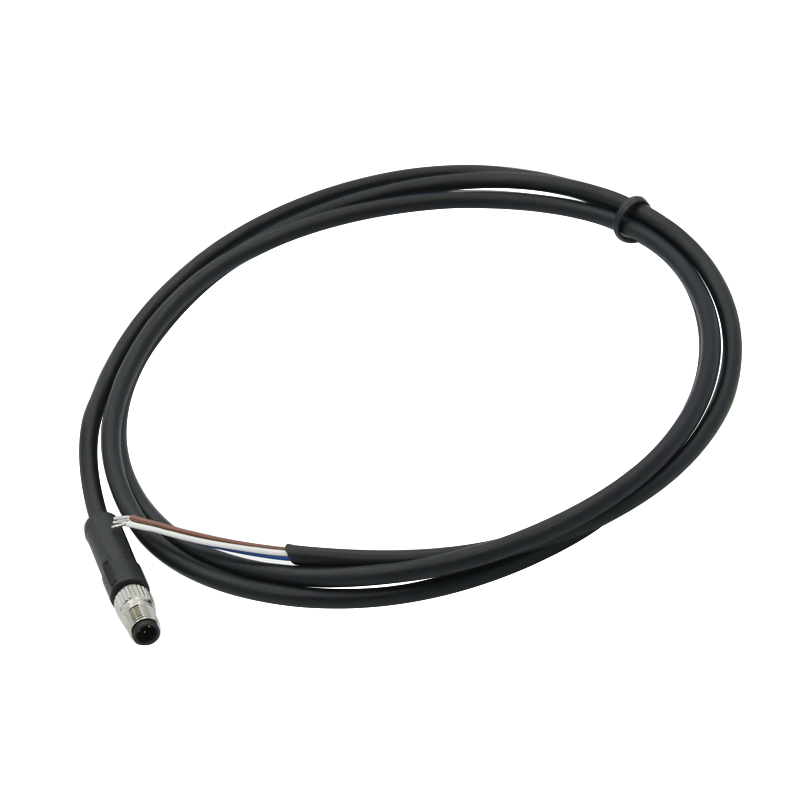

Featuring a molded straight male design and screw locking system with an M5 thread, these connectors provide exceptional mechanical stability. The product range includes options with 3 pin waterproof connector and 4 pin waterproof connector configurations, rated for 60V and 1A current capacity. Constructed with brass contacts plated in gold, the connectors meet IEC 61076-2-105 standards and offer IP67 waterproof protection. Cable materials including PVC and PUR, customizable cable lengths, and stringent compliance with CE, RoHS, and REACH certifications attest to the product’s rigorous technical quality.

Application in Industrial Automation and Control Systems
Widely adopted by circular connector manufacturers in industrial automation, these M5 connectors facilitate reliable sensor data transmission in wet or harsh environments. Their small size and waterproof attributes make them ideal for installation in control panels, robotics, and precision equipment requiring compact and durable interconnections. The connectors support seamless workflow integration by enabling durable, corrosion-resistant connections in automated machinery and prototype testing setups, contributing to improved operational uptime and system reliability.

Product Advantages

Design and Structural Integration Benefits

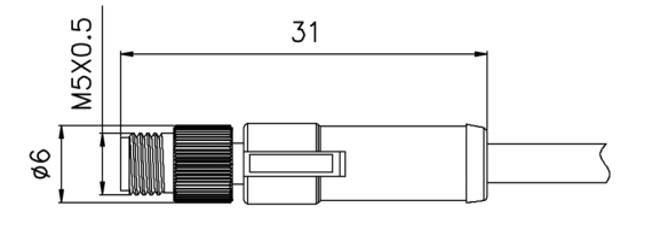

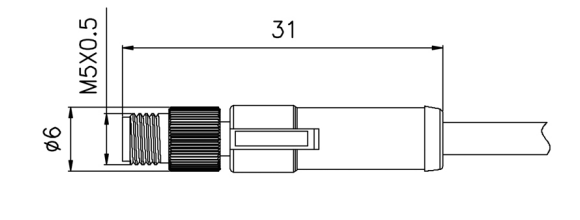

The M5 connectors feature a modular design optimized for easy assembly and maintenance within dense wiring configurations. The screw locking mechanism combined with an M5*0.5 thread provides secure coupling, reducing the risk of accidental disconnections. As a trusted product among pcb connector manufacturers, this design enables efficient integration into pcb mount circular connector configurations and cable assemblies. Furthermore, the high-grade materials such as brass with gold plating enhance contact longevity and resistance to environmental degradation, aligning with industrial standards for durable interconnectivity.

Enhanced Performance and Practical Usability
Incorporating 3 pin waterproof connector and 4 pin waterproof connector options, these connectors deliver consistent electrical performance with minimal contact resistance. The IP67 rating ensures operational reliability in moisture-exposed settings, which is critical for electrical connector manufacturer customers prioritizing system uptime. The customizable cable lengths and material options improve adaptability to varying project requirements, providing end users with flexible solutions for sensor network expansion or repairs. This combination of durability, precision, and usability enhances installation efficiency and maintenance predictability.

Use Scenarios

Sensor Integration in Automated Industrial Machinery
In high-demand automated manufacturing environments, precise sensor connectivity is vital for process accuracy and machine control. These M5 connectors are utilized to link miniature sensors within automated systems, supporting real-time data acquisition and operational feedback. Their compact footprint and IP67 waterproof rating allow them to function reliably despite exposure to industrial fluids or washdowns. The connectors’ compliance with IEC 61076-2-105 ensures standardized compatibility, supporting streamlined workflow integration for engineers relying on robust, quick-coupling circular connector manufacturers’ components.

Compact Wiring Solutions in Harsh Environments
Within control panels and instrumentation setups where space is limited and environmental conditions are challenging, these connectors provide secure and durable electrical connections. The pcb mount circular connector format enables integration on compact printed circuit boards, saving valuable assembly space. The availability of 3 pin waterproof connector and 4 pin waterproof connector variants makes this product suitable for multiple signal and power lines while guaranteeing protection against dust and water ingress. Such features facilitate compliance with industrial safety standards and simplify maintenance within electrical installation procedures.

FAQ

What cable materials are available for your M5 circular connectors?
We offer M5 circular connectors with cables made from PVC, PUR, and halogen-free materials. These options ensure durability and suitability for various industrial environments. Our expertise as experienced circular connector manufacturers guarantees you receive components tailored to your needs.

Can you customize the cable length for M5 connectors?
Yes, we provide customized cable lengths for all our connectors to match your project specifications. This flexibility supports efficient wiring design in confined spaces and streamlines installation, making us a preferred electrical connector manufacturer for tailored solutions.

How do I ensure proper installation and locking of the M5 circular connector?
Our M5 connectors feature a screw locking system with an M5*0.5 thread, ensuring secure and reliable connections. We recommend tightening the screw until fully engaged to maintain waterproof IP67 protection and stable signal transmission in demanding industrial applications.

What is the typical delivery time for your M5 circular connectors?
We usually ship samples within 3-7 working days, with bulk order timelines adjustable upon negotiation. This ensures prompt supply of our precision-made connectors, trusted in the market of pcb connector manufacturers supporting industrial sensor connectivity.
