USB B male 2.0 3.0 ip67 panel mount soldering industrial circular waterproof cable connectors

Brief Information:

  • Model: USB B connector
  • Gender: Male
  • Available numbers of contacts: 9(USB 3.0) 4(USB 2.0)
  • Locking system: Threaded and bayonet
down load to pdf

USB B socket connector technical data：

Gender: Male
Contact diameter x number: 9(USB 3.0)    4(USB 2.0)
Application: Power,signal,data
Temperature range:  -40~+105°C
Coupling: Thread and bayonet
IP rating: IP67
Rated voltage: 30V
Rated current: 1.5A
Insulation impedance: 2000MΩ
Durability: ≥500 mating cycles
Contact material: Brass
Shell material: Thermoplastic PA66, flame retardant grade: V-0
Waterproof o-ring: Silicon gel
Certification: CE RoHs REACH IP67
Suitable cable OD: OD5.5-7.0mm (24-26AWG)
Cable material: PVC

Description about USB B connectors:

‌Waterproof USB Type B connector ‌ is a waterproof USB connector, usually used in the need of waterproof protection, such as outdoor equipment, industrial equipment and medical equipment. Its main features include high water resistance, strong durability and a wide range of applications.

Waterproof rating and applicable environment

Waterproof USB Type B connectors are usually IP67 or higher. The IP67 rating means that the connector is completely protected from dust and can be submerged in water up to 1m for 30 minutes without water ‌12. This design allows the connector to work stably in wet or underwater environments and is suitable for a variety of outdoor and industrial applications.

Material and structure

Waterproof USB Type B connectors are typically made of high-quality materials, including glass-filled thermoplastics, pure copper cores, and PVC cladding. These materials not only improve the durability of the connectors, but also ensure their stability in harsh environments ‌12. In addition, some products also use the optimized design structure of epoxy rubber based plastic seal, which further improves its waterproof and anti-corrosion ability ‌3.

Application scenario

Waterproof USB Type B connectors are used in a wide variety of devices and systems that require waterproof protection, including:

1:Outdoor equipment ‌ : such as cameras, drones and other equipment that need to work outdoors.

2:Industrial equipment ‌ : such as factory automation equipment, testing instruments, etc., need to work stably in complex environments.

3:medical equipment ‌ : such as monitors, operating lights and other medical equipment requiring high reliability and waterproof performance.

More information about USB B connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days
Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

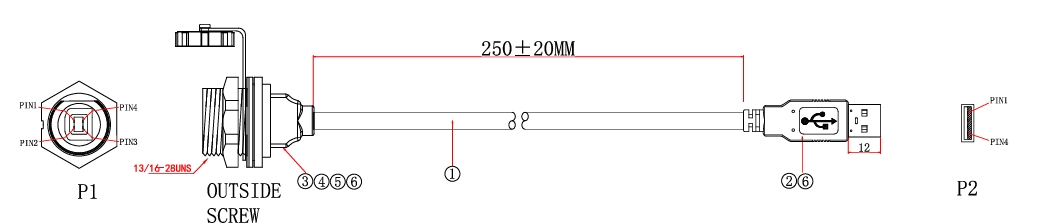

  • USB B male panel mount connector size information:
  • USB B male panel mount connector size information:



Product Description



Advanced Industrial Interface for Harsh Conditions
Engineered for professional users requiring dependable connectivity, this usb panel mount connector serves demanding industrial sectors needing ruggedized components. The usb circular connector design supports both usb 2.0 and usb 3.0 standards, ensuring compatibility with modern systems. It targets engineers and procurement specialists seeking a waterproof usb connector solution capable of maintaining stable signal, power, and data transfer under extreme environmental stress, including dust exposure and immersion, thus optimizing operational reliability.



Precision Engineering and Robust Specifications
This waterproof usb connector features an IP67 rating, guaranteeing dust tightness and waterproof performance up to 1 meter immersion for 30 minutes. Equipped with a combined threaded and bayonet locking system, the panel mount usb connector reliably affixes to control panels, facilitating secure soldering connections. It is constructed with flame-retardant thermoplastic and brass contacts, operable in temperature ranges between -40掳C and +105掳C. Technical specs include support for 4 contacts in usb 2.0 and 9 contacts in usb 3.0 configurations, rated voltage of 30V, and current up to 1.5A. This ensures consistent industrial-grade performance.



Versatile Integration in Industrial and Medical Equipment
The usb connector supplier certifies compliance with CE, RoHs, and REACH standards, supporting industries that demand rigorous safety and environmental adherence. Commonly integrated in outdoor equipment, medical devices, and factory automation, this usb panel mount connector enables secure, maintenance-friendly interfaces resistant to corrosive and wet conditions. It enhances data acquisition, control, and monitoring applications by providing long-lasting, waterproof connectivity solutions aligned with system integration goals in harsh operational contexts.





Product Advantages



Design and Structural Benefits for System Integration
This usb circular connector incorporates a dual locking mechanism with threaded and bayonet options, enhancing installation flexibility and mechanical stability for panel mounting applications. The panel mount usb connector features a silicon gel waterproof o-ring to ensure enhanced sealing, critical in environments requiring IP67 protection against dust and moisture ingress. The modular design facilitates straightforward soldering connections, supporting cable diameters fitting standard industrial wiring. Constructed with durable brass contacts and a flame-retardant housing, the product assures compatibility with high-temperature operation and long service life. These structural considerations make it an ideal component for robust industrial designs.



Operational Excellence and User Efficiency
From a usability standpoint, this waterproof usb connector delivers consistent electrical performance across standard usb 2.0 and usb 3.0 interfaces, supporting both data transfer and power demands. Its ergonomic coupling design simplifies connection and disconnection cycles, sustaining at least 500 mating cycles, thus reducing maintenance and downtime risks. The connector’s ability to withstand temperature extremes and moisture ingress ensures operational continuity in critical systems. By providing a reliable and secure connection, it minimizes the risk of signal loss or hardware failures, thereby maximizing system uptime and return on investment for industrial users.





Use Scenarios



Outdoor Equipment Connectivity in Environmental Monitoring
Outdoor monitoring systems such as environmental sensors and surveillance cameras require durable interfaces able to endure weather, dust, and accidental submersion. This waterproof usb connector enables secure data and power transmission in these devices, maintaining integrity despite exposure to rain or particulate contamination. Its IP67 rating is critical in ensuring functional reliability within such unprotected environments. The usb panel mount connector supports integration with rugged enclosures on drones or field instruments, facilitating quick installation and dependable operation as part of outdoor equipment communication networks.



Industrial Automation and Test Instrument Connectivity
In factory automation and testing facilities, reliable data connections are vital for continuous monitoring and control. This panel mount usb connector is engineered to withstand harsh factory conditions including temperature fluctuations, dust, and mechanical vibrations. By providing a stable link for signal and power via usb 2.0 or usb 3.0 standards, it enhances factory throughput and accuracy. The locking mechanism ensures stable fixture on control panels, facilitating maintenance and replacement. As part of the industrial data transmission infrastructure, these connectors contribute to efficient production workflows and reduced operational disruptions.





FAQ



What materials are used in your USB B male connectors?
Our USB B male connectors use durable brass contacts for reliable conductivity and a thermoplastic PA66 shell with flame-retardant grade V-0. The waterproof o-ring is made from silicon gel, providing robust protection required by industrial applications and qualifying as a trusted usb connector manufacturer.



Can you customize panel mount USB connectors for specific industrial needs?
Yes, we offer customization on our usb panel mount connector products to meet your specific requirements, including contact configurations, shell materials, and sealing options. Our manufacturing expertise allows us to tailor solutions for your industrial environment and application.



How do I install the USB circular connector onto a panel?
Our USB circular connectors feature a threaded and bayonet locking system designed for secure panel mounting. Installation involves soldering the cable to the contacts, then locking the connector firmly onto the panel for a stable, waterproof connection suitable for harsh conditions.



What certifications ensure the quality of your waterproof USB connector?
Our waterproof USB connector complies with CE, RoHS, and REACH certifications. These verify that the products meet international safety, environmental, and quality standards, giving you confidence in their industrial suitability and reliability.
