M16 assembly 2/3/4/5/6/7/8/12/14/16/19/24pin female C091 metal shielding circular connectors

Brief Information:

  • Model: M16 connector
  • Gender: Female
  • Available numbers of contacts: 2-24pin
  • Shielding: Available
  • Orientation: Straight 180°
down load to pdf

M16 molded connector technical data:

Contacts poles: 2pin 3pin 4pin 5pin 5pin(stereo) 6pin（din） 7pin
Contact arrangement:
Rated current: 7A 7A 6A 6A 6A 5A 5A
Rated voltage: 250V 250V 250V 250V 250V 250V 125V
Contacts poles: 7pin(din) 8pin(din) 12pin 14pin 16pin 19pin 24pin
Contact arrangement:
Rated current: 5A 5A 5A 3A 3A 3A 1A
Rated voltage: 125V 125V 60V 60V 60V 60V 60V
Wire gauge: 28-16AWG/Customized
Connector gender: Female
Contacts termination: Soldering
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PA+GF
Orientation: Straight 180°
Screw thread: M16*0.75
O-ring: FKM or silicon
Temperature range: -25°C~+80°C
Connector locking system: Screw
Contacts plating: Brass with gold plated
Shell/Nut/Screw: Brass with nickel plated
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Available
Reference standard: IEC 61076-2-106

Description:

M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 with a robust metal housing and environmental protection rating of IP67 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.
  • 1Poles: 2-24pin
  • 1Voltage rating: 60-250V
  • 1Current rating: 1-7A
  • 1Custom cable specification and lengths, molded with PVC, PUR or TPE cable
  • 1The panel mount receptacle counter part with PCB contacts or Solder cup
  • 1Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Drag China cable options are available
  • 1IP67 degree of protection
  • 1IP67 degree of protection
  • 1Robust metal connector shell
  • 1Excellent EMI shielding
More information about M16 circular connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type

1000meters for cable and color

10000pcs for contacts
Package: One pcs in PE bag then put all in carton
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

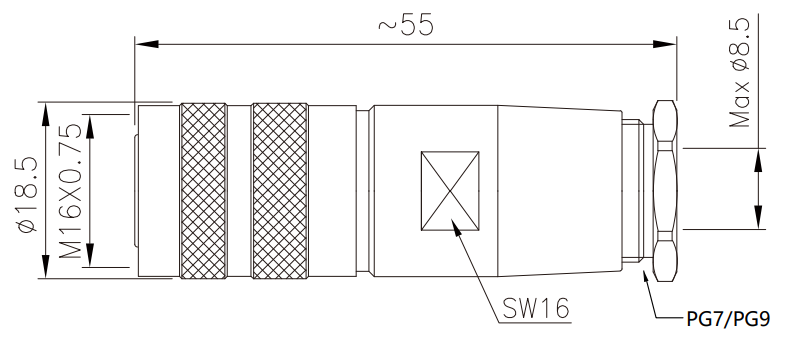

  • M16 female metal assembly type connector drawing

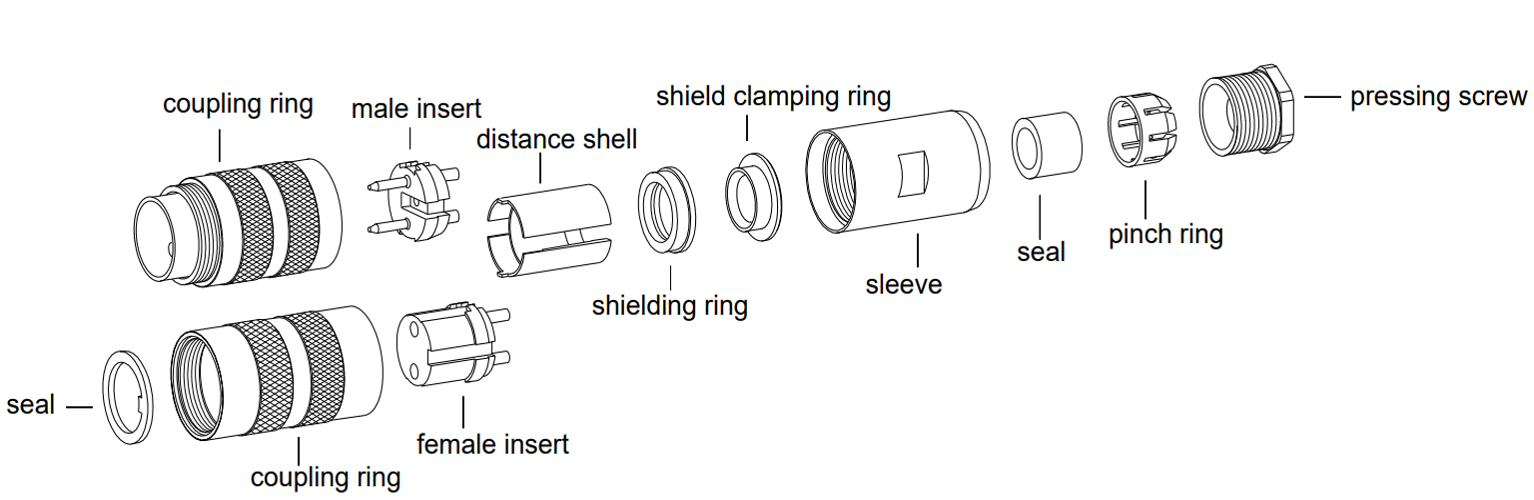

  • Assembly instruction:
  • M16 female metal assembly type connector drawing
  • Assembly instruction:



Product Description



Targeted Industrial Connectivity Solutions
Designed specifically for professionals requiring durable and reliable connections, these M16 connectors offer extensive versatility with multiple pin configuration options, including the 12 pin circular connector. Ideal for system integrators and engineers, this product suits applications demanding lasting mechanical stability and environmental resistance. The integrated panel mount connector option enhances installation efficiency in control cabinets and equipment housings. Our company, a leading electrical connector manufacturer, ensures these connectors meet stringent requirements for industrial automation and outdoor electrical systems where quality and compatibility are essential.



Advanced Technical Construction and Specifications
Constructed with metal shielding and a robust build, the M16 connectors feature brass contacts with gold plating to maintain low contact resistance and superior conductivity. Rated for currents ranging from 1A to 7A and voltages between 60V and 250V depending on pin count, these products provide measurable, high-performance electrical parameters. The IP67 waterproof circular connector rating guarantees protection against water immersion and dust ingress, key factors in harsh operational environments. Threaded with an M16*0.75 screw locking mechanism, the connectors ensure secure and EMI-shielded connections compliant with IEC 61076-2-106. Custom cable configurations further enhance adaptability.



Applicable Industrial Usage and System Integration
These connectors play a critical role in automating factory systems, outdoor machinery, and sensor interface solutions where robust, waterproof connections are mandatory. The panel mount connector variant simplifies installation and maintenance within control panels, supporting reliable signal and power transmission under demanding conditions. As part of the suite offered by top circular connector manufacturers, this product facilitates high system uptime and efficient workflow integration. Its proven mechanical durability supports over 500 mating cycles, providing long-term operational stability in industrial and harsh field applications.





Product Advantages



Structural and Design Engineering Strengths
The design of these M16 connectors incorporates precision-engineered threading and a metal shielding system that significantly reduces electromagnetic interference. Their modular design supports configurations from 2 to 24 pins, including the widely demanded 12 pin circular connector, enabling flexible use across diverse projects. With durable brass shells and gold-plated contacts housed in IP67 waterproof circular connector casings, the product meets rigorous environmental resistance standards. The panel mount connector option allows seamless integration into control systems by increasing mechanical stability and reducing installation complexity. These features underscore our commitment as an electrical connector manufacturer to engineered reliability and system adaptability.



Enhanced Performance and User-Centric Value
In operational performance, these connectors deliver secure electrical contact with minimal resistance, supporting rated currents up to 7A for optimal power transfer efficiency. The waterproof circular connector rating ensures dependable function in wet or dusty industrial environments, mitigating downtime risks. Users benefit from a screw-locking M16 thread mechanism that provides facile connection and disconnection while maintaining robust environmental sealing. The inclusion of customizable cable lengths responds to diverse wiring challenges across industries. Overall, this solution supports user requirements for dependable, maintenance-friendly interfaces critical to automated system performance.





Use Scenarios



Industrial Automation Connectivity in Harsh Environments
In industrial automation, reliable connector performance is paramount for ensuring uninterrupted power and signal transmission among sensors, actuators, and control units. The M16 connectors with metal shielding and waterproof circular connector specifications are engineered to withstand exposure to dust, moisture, and mechanical stress, essential in manufacturing plants and outdoor installations. The panel mount connector variant facilitates easy integration into control cabinets, improving system modularity and maintenance accessibility. By conforming to international standards, these connectors assure regulatory compliance and enhance the lifecycle of automation wiring harnesses in complex industrial environments.



Outdoor Machinery Electrical Interfaces and Protection
Outdoor machinery operating in variable weather conditions demands connectors that offer stringent environmental sealing and EMI protection. These M16 connectors, classified as waterproof circular connector devices with IP67 certification, prevent ingress of water and particulate matter, ensuring longevity and data integrity. Their sturdy metal shielding aids in minimizing electromagnetic interference commonly encountered in outdoor equipment. With customizable configurations that include the 12 pin circular connector option, these products support diverse wiring and power requirements, enhancing machine reliability and simplifying maintenance cycles. Such robustness allows seamless integration into rugged field systems essential to operational continuity.





FAQ



What materials are used in your M16 circular connectors?
Our M16 connectors use brass contacts plated with gold for excellent conductivity and corrosion resistance. The metal shells are nickel-plated brass, providing robust mechanical strength and EMI shielding. Connector inserts are made from PA+GF, ensuring durability suitable for industrial applications.



Can you customize cable lengths and specifications for these connectors?
Yes, we provide customized cable specifications and lengths molded with PVC, PUR, or TPE materials to fit your precise wiring needs. This flexibility helps meet various industrial requirements when sourcing from a trusted circular connector manufacturer.



How do I install and secure your M16 female connectors?
Our M16 connectors feature a screw-locking mechanism with an M16*0.75 threaded joint, providing a secure and stable connection. The straight 180掳 orientation simplifies wiring, and over 500 mating cycles ensure long-term reliability in industrial environments.



What logistics and delivery options are available for bulk orders?
Sample orders typically ship within 3-7 working days. For bulk orders, lead times depend on quantity and customization. We work closely with you to accommodate delivery schedules and production needs, solidifying our reputation as a reliable electrical connector manufacturer.
