Product Details Display

Product Description

Compact Solution Tailored for Automotive Sensor Integration

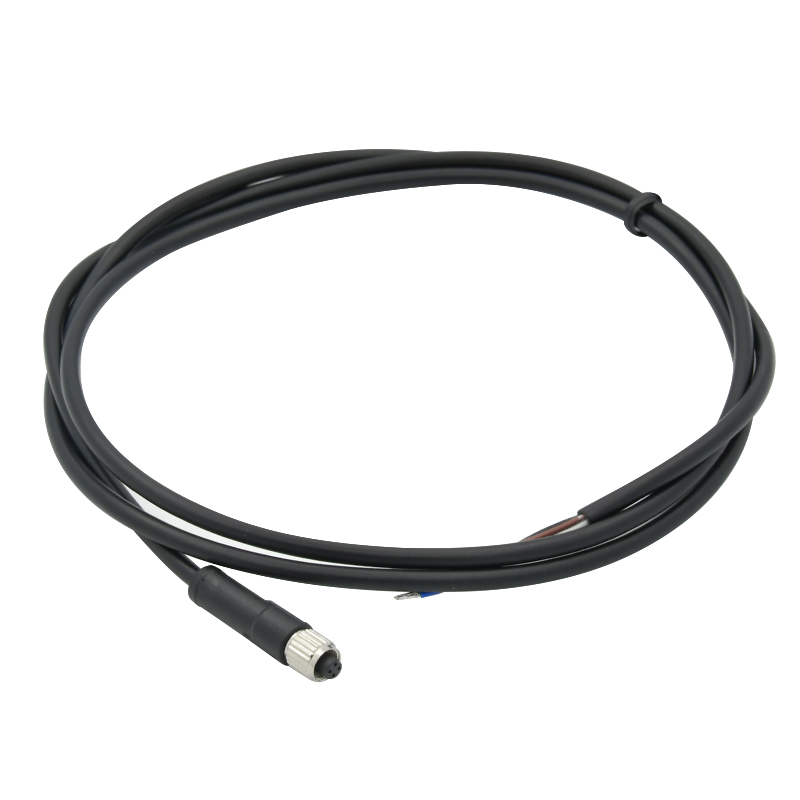

Designed with precision by expert circular connector manufacturers, the M5 Female Connector Sensor is optimized for automotive environments requiring compact, reliable connections. Targeted at system integrators and electrical engineers, this connector facilitates secure sensor links in constrained spaces. Its compatibility with both 3 pin waterproof connector and 4 pin waterproof connector configurations enables flexibility in sensor design and signal transmission. The solution addresses challenges in dense vehicle sensor arrays, ensuring seamless integration while supporting customizable cable lengths to meet specific automotive installation demands.

Advanced Technical Specifications Ensuring Durability and Reliability

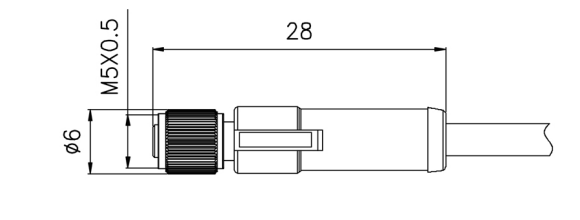

This connector features an M5 screw thread design, delivering an IP67 rated waterproof seal, which resists water ingress up to a 1-meter depth for 30 minutes. It supports 1A current at 60V voltage across 3pin or 4pin contacts, with gold-plated brass conductors that ensure minimal contact resistance and enhanced corrosion protection. The overmolded PVC or TPU housing protects against mechanical stresses, while nickel-plated brass components maintain structural integrity. FKM or silicon O-rings and screw locking mechanisms further guarantee vibration-resistant connectivity, making this product a dependable electrical connector manufacturer solution for rigorous automotive applications.

Integration Benefits in Automotive Sensor Systems
Within automotive manufacturing and repair environments, this connector provides critical value for sensor signal transmission in wet or vibration-prone conditions. OEMs and wiring harness assemblers utilize the M5 Female Connector Sensor to achieve compact, watertight junctions that comply with IEC 61076-2-105 standards. Its adaptability to customized cables supports tailored sensor setups, improving assembly efficiency and system reliability. This product aligns with demands for robust, low-current sensor interfaces, playing a key role in prototype development and production sensor harnesses, thereby supporting optimized vehicle sensor networking.

Product Advantages

Innovative Structural and Design Benefits for Industrial Use
The ergonomic design of the M5 Female Connector Sensor incorporates a durable M5 threaded locking system favored by pcb connector manufacturers for secure coupling under vibration. Modularity in 3 pin waterproof connector and 4 pin waterproof connector variants facilitates versatile sensor configurations within automotive electrical systems. The overmolded housing, combined with gold-plated contacts, integrates seamlessly into robust wiring harnesses. Advanced sealing elements and corrosion-resistant materials comply with standards upheld by premier electrical connector manufacturer practices, enabling easy customization of cable lengths without sacrificing durability or mechanical stability.

Enhanced Performance and User-Centric Functionality
This connector offers stabilized electrical performance with low contact resistance and reliable waterproofing critical for automotive sensor environments. Ease of installation is supported by a straight 180掳 orientation and screw-type locking system, reducing assembly time and maintenance complexity. The customizable cable length enhances adaptability, aligning with diverse vehicle platform requirements. As a product favored by circular connector manufacturers, it consistently delivers operational reliability through extensive mechanical cycles, providing system designers and maintenance teams an efficient, long-lasting interface that minimizes downtime and supports sensor accuracy.

Use Scenarios

Sensor Connectivity in Harsh Automotive Environments
In automotive under-hood applications, the M5 Female Connector Sensor ensures dependable connectivity for sensor arrays exposed to moisture, vibration, and temperature variations. This 3 pin waterproof connector and 4 pin waterproof connector are integral in securing reliable electrical signals from sensors monitoring engine parameters and environmental conditions. Their IP67 rating guarantees moisture ingress protection, while the rugged M5 locking mechanism maintains contact integrity during intense vehicular operation. Integration with wiring harnesses manufactured by leading pcb connector manufacturers allows streamlined assembly processes and effective resistance to contaminants, supporting continuous sensor performance in demanding industrial conditions.

Customized Cabling Solutions for Automotive Sensor Networks
Automotive manufacturers requiring tailored sensor setups leverage the customizable cable length capability of this M5 connector to enhance system design flexibility. This product functions as a critical link in prototype and production sensor harnesses, where adapting cable runs with precise lengths reduces excess wiring and simplifies installation. The use of high-quality materials by an experienced electrical connector manufacturer assures durable performance amid mechanical stress and chemical exposure. Consequently, this connector supports OEMs and electrical engineers by enabling scalable sensor network configurations that meet strict environmental and signal integrity standards without compromising assembly efficiency.

FAQ

What cable materials are available for the M5 female connector sensor?
We offer cable materials including PVC, PUR, and halogen-free options to meet diverse automotive requirements. This ensures compatibility with varying environments and chemical exposures in industrial applications, making our circular connector manufacturers capabilities well-suited for your sensor needs.

Can I customize the pin configuration and cable length for this connector?

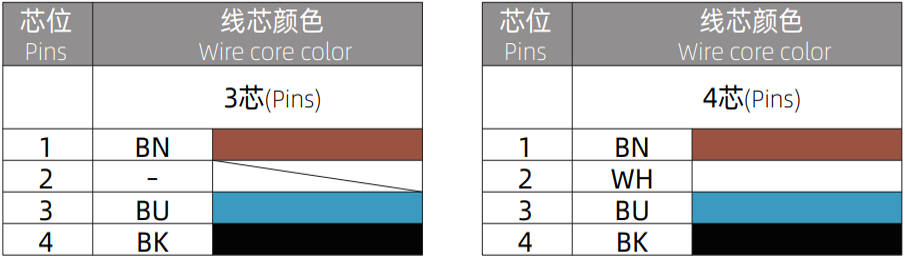

Yes, our M5 connectors come in either 3-pin or 4-pin configurations, and you can customize cable length and color to fit your specific setup. We manufacture tailored solutions to enhance flexibility for automotive sensor installations and wiring configurations.

How durable is the M5 connector in automotive environments?
Our connector features a robust M5 threaded locking system, gold-plated brass contacts, and an IP67 rating for waterproof protection. It withstands vibration and mechanical stress typical in automotive settings, ensuring secure, reliable connections that meet industrial standards for electrical connector manufacturer quality.

What is the usual lead time for small orders or samples of this connector?
We typically provide samples within 3-7 working days, allowing you to evaluate the product promptly. Our experience as a trusted electrical connector manufacturer ensures streamlined processes to support your testing and development schedules efficiently.
