Functional Role and Target End Users of M5 Connectors

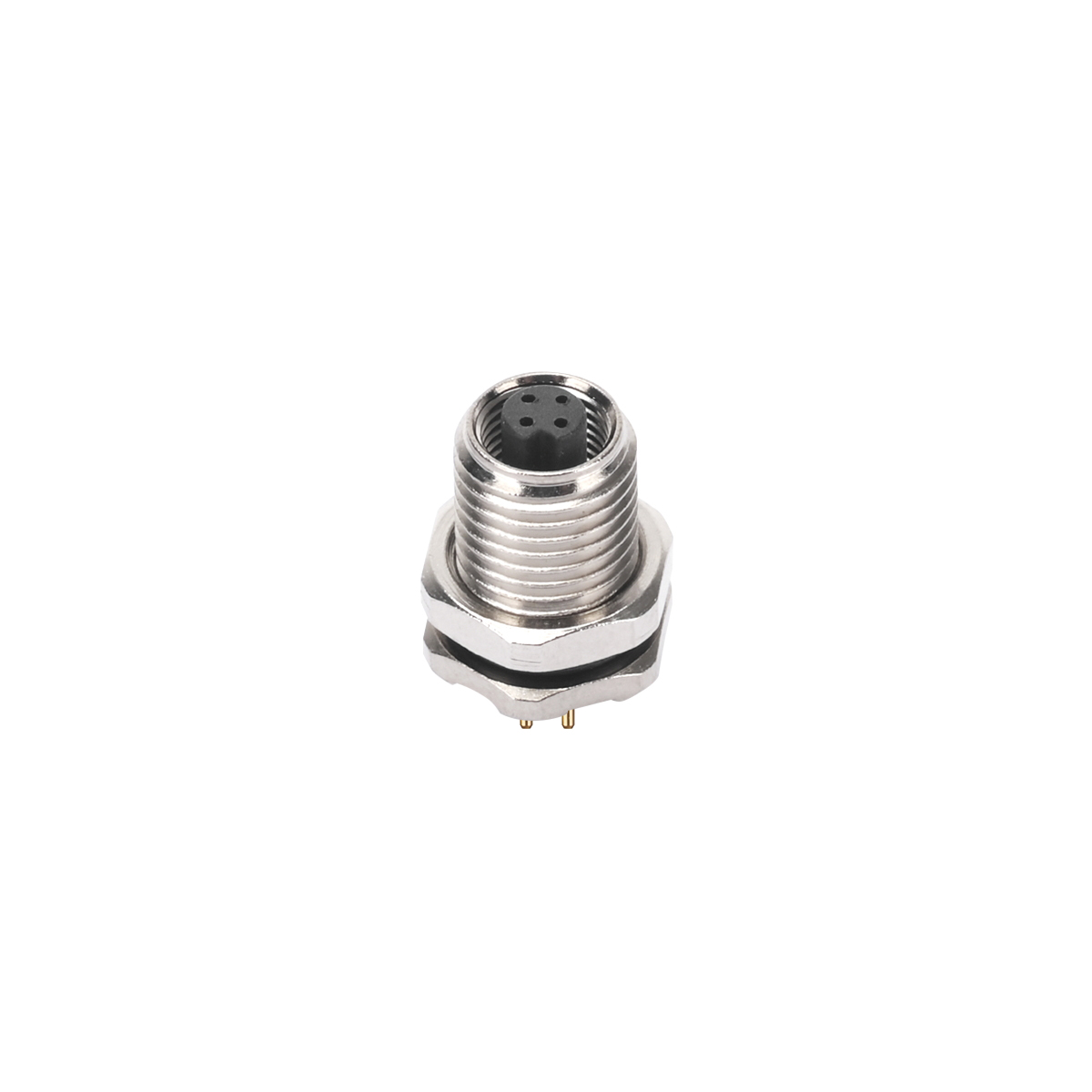

The M5 connectors are engineered primarily for professionals requiring robust, miniature connections in sensor and instrumentation systems. As critical components from experienced circular connector manufacturers, these connectors are optimized for applications involving signal transmission and low-power electrical interfaces. The design accommodates front fastened mounting and a compact round form factor, enabling seamless integration in constrained spaces prevalent in industrial automation and measurement equipment. This positions the M5 connectors as key elements for engineers and procurement specialists who demand dependable interconnectivity solutions from trusted pcb connector manufacturers for sophisticated control and sensing networks.

Technical Specifications and Engineering Attributes
Precisely manufactured as part of solutions by reputable electrical connector manufacturers, the M5 connectors feature 3 or 4 pin waterproof connector configurations, delivering flexibility for diverse wiring schemes. Rated at 60V and 1A, they support wire gauges of 26 AWG (0.14 mm虏) appropriate for low-current signals. Their front fastened, screw-locked M5*0.5 thread ensures mechanical stability, while corrosion-resistant brass contacts with gold plating uphold conductivity. These pcb mount circular connectors meet IP67 standards, providing waterproof protection suitable for challenging environments with exposure to moisture and vibration. Material selection includes epoxy resin and FKM or silicon O-rings, confirming resilience and compliance with IEC 61076-2-105 standards.

Industry Applications and Integration Benefits
Within industrial automation, instrumentation, or robotics, the M5 connectors serve as vital interface points, ensuring stable sensor data conveyance in harsh environments. These pcb connector manufacturers provide connectors well-suited for panel mount setups requiring front fastening and waterproof resilience. Their design simplifies system assembly and maintenance, facilitating reliable sensor integration in manufacturing lines, energy management, and environmental monitoring. The availability of both 3 pin waterproof connector and 4 pin waterproof connector variants allows precise adaptation to specific signal protocols or power requirements, enabling reliable, reproducible operational outcomes critical for industrial-grade system performance.

Product Advantages

Structural and Design Advantages of M5 Connectors

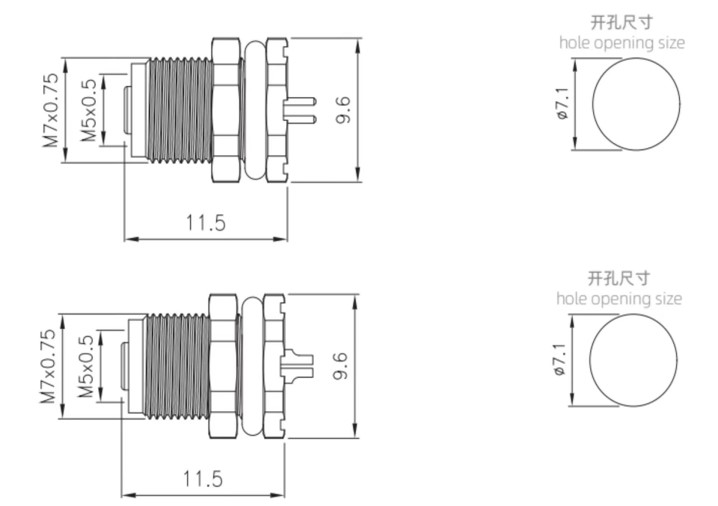

This range of M5 connectors demonstrates a thoughtfully engineered modular design that ensures seamless integration within existing systems, a key benefit highlighted by premier circular connector manufacturers. The screw locking mechanism utilizing an M5*0.5 thread offers robust mechanical retention, essential for vibration resistance in industrial contexts. The compact round shape with front fastened mounting supports easy installation in confined PCB layouts. Use of high-grade brass shells with nickel plating and gold-plated contacts assures long-term corrosion resistance, which is indispensable when dealing with variable environmental conditions. The availability of pcb mount circular connector termination and welding options provides flexible assembly choices customized to application demands.

Performance and User-Centered Benefits
From a performance standpoint, these electrical connector manufacturer offerings ensure stable electrical contact with minimal contact resistance, maintaining signal integrity under operational stress. The connectors comply with IP67 waterproof standards, enabling dependable operation in humid or wet industrial settings. Their design streamlines maintenance workflows by permitting quick, secure front fastening removal and replacement. Furthermore, the choice between 3 pin waterproof connector and 4 pin waterproof connector models affords users the ability to match connector configurations exactly to system requirements. This versatility results in significant efficiency gains and contributes to reducing downtimes in sensor network deployments.

Use Scenarios

Sensor Interface Solutions in Compact Industrial Setups
In industrial automation environments focused on precise sensor data acquisition, the M5 connectors enable secure interfaces between miniature sensors and PCB-based control modules. Their compact size and front fastened mount suit limited-space panels commonly found in production lines. Featuring waterproof attributes that comply with IP67 standards, these connectors reliably prevent ingress of moisture and dust. This is critical for sensitive measurement and control devices exposed to harsh factory conditions. The availability of 3 pin waterproof connector and 4 pin waterproof connector formats from trusted pcb connector manufacturers ensures compatibility with a range of sensing configurations, optimizing system reliability and uptime.

Panel Mounted Connectors for Harsh Environment Integration
In engineering applications demanding panel mount circular connector solutions, the M5 connectors from established electrical connector manufacturer providers serve to facilitate durable external interface points. Their robust screw locking mechanism combined with corrosion-resistant materials secures connectors against mechanical disruption and environmental degradation. This is particularly beneficial in sectors such as energy management or marine instrumentation, where equipment is subjected to vibration, humidity, or occasional water exposure. By integrating these connectors, system designers achieve compliance with stringent industrial standards while maintaining ease of installation and serviceability within complex wiring harness assemblies.

FAQ

What materials are used in the M5 IP68 connector construction?
Our M5 connectors feature brass contacts with gold plating and a brass shell with nickel plating, which enhance corrosion resistance and ensure reliable electrical conductivity. The connector insert is made from PA+GF, and sealing components include epoxy resin with FKM or silicon O-rings for waterproofing.

Can the M5 connector support different wiring configurations?

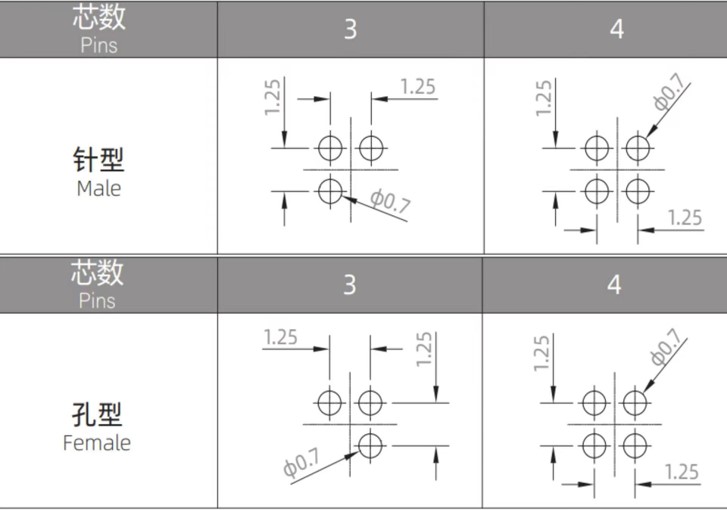

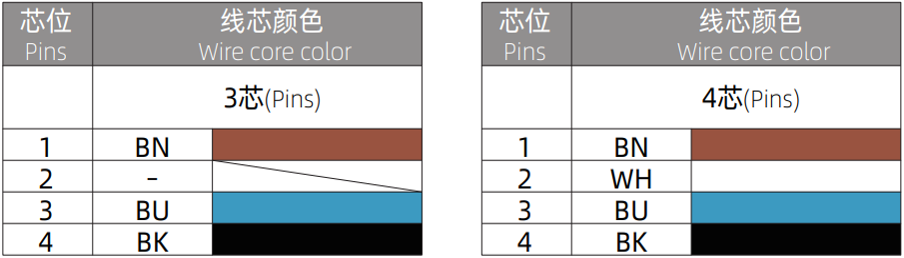

Yes, the M5 IP68 connector is available with either 3-pin or 4-pin arrangements, accommodating flexible wiring needs. It supports multiple termination methods such as soldering, PCB mounting, and wire welding to fit various industrial applications.

Do you offer customization services for your connectors and wire harnesses?
We provide tailored customization including custom cable lengths and specific configurations to meet your project requirements. As experienced circular connector manufacturers, we work closely with clients to deliver precise solutions that align with their technical needs.

What is the typical lead time for orders of M5 connectors and related products?
Sample orders are usually shipped within 3 to 7 working days. For bulk orders, delivery times depend on order size and production schedules. We maintain efficient processes to ensure timely supply, reflecting our commitment as a dependable electrical connector manufacturer.
