Functional Design for Rugged Connectivity Needs

The m12 panel mount connector is specifically engineered for demanding industrial use, targeting professionals who require dependable electrical interfaces in harsh environments. As a core product from reputable m12 connector manufacturers, it provides dependable sealing and robust construction to meet the needs of automation engineers, system integrators, and equipment manufacturers. Its panel mount design ensures secure bulkhead integration, delivering stable connections critical for control enclosures and network nodes where uptime and system integrity are paramount. Such engineering ensures the connector meets operational requirements across various fieldbus and sensor networks.

Advanced Technical Specifications and Material Composition

This waterproof panel mount connector features a rugged housing constructed from Nylon with a PA+GF insert, ensuring mechanical resilience and chemical resistance. Its IP67 sealing is accomplished through precise O-rings and FKM or silicone sealing materials, ensuring protection against dust and immersion up to 1 meter for 30 minutes. The connector supports multiple pin counts (3 to 17) and coding options (A, B, D), with soldering and wire-welded termination variants suitable for flexible integration. Rated voltages reach 250V with contact currents up to 4A, with specifications aligned to IEC 61076-2-101 standards. The operating temperature range spans from -25°C to +80°C, enabling stable function in extreme industrial and marine conditions.

Application Versatility in Industrial and Marine Environments

This waterproof panel mount connector is extensively utilized in fields requiring stringent environmental resistance, such as marine instrumentation, automation systems, and outdoor sensor interfaces. Its design supports secure interfaces in NMEA 2000 networks and ruggedized control panels, facilitating seamless data and power transmission. The connector’s compatibility with bulkhead enclosures ensures protection against environmental hazards while supporting complex multi-pin configurations for diverse sensor and actuator arrays. It aligns with system reliability needs in automation, industrial Ethernet, and fieldbus infrastructures, delivering consistent electrical performance in critical operational workflows.

Product Advantages

Robust Structural and Design Integration

The design philosophy behind this connector emphasizes modularity and environmental sealing, characteristics highly valued by circular connector manufacturers. The front-fastened panel mount mechanism offers a straightforward yet secure installation methodology, reducing mechanical stress and potential ingress points. Utilizing materials such as Nylon and PA+GF composite inserts enhances durability against mechanical and chemical wear while maintaining weight efficiency. Additionally, termination flexibility, including PCB and wire welding options, enables seamless compatibility with various system architectures, consolidating the connector’s status as an adaptable component in complex assemblies involving m12 bulkhead connectors.

Superior Performance and User-Oriented Reliability

Performance-wise, this socket connector delivers stable electrical characteristics, including low contact resistance (≤5 mΩ), high insulation resistance (≥100 MΩ), and a lifecycle exceeding 500 mating cycles. These factors contribute directly to reduced maintenance and operational downtime. Its IP67 rating ensures reliable function in moisture-prone environments, essential for outdoor and marine applications. User benefits encompass ease of installation combined with consistent signal integrity, supporting automation engineers and maintenance teams in achieving high system uptime. The connector’s robust design and comprehensive technical validation underline its role as a trusted solution from leading electrical connector manufacturers.

Use Scenarios

Marine NMEA 2000 Network Panel Integration

Within marine and offshore environments, the M12 panel mount connector plays a critical role in establishing reliable, waterproof interfaces for NMEA 2000 communication networks. Its IP67-rated sealing and durable Nylon housing prevent water ingress and corrosion in harsh oceanic conditions, maintaining uninterrupted network performance. Such connectors are installed in control panels and bulkhead enclosures to secure connections between navigation devices, sensors, and control units. Conformity with industry standards ensures compliance and interoperability, making it indispensable for maritime electronics manufacturers and system integrators who demand robust and maintainable solutions.

Industrial Automation and Sensor Interface Applications

In industrial automation settings, this connector facilitates secure bulkhead connections for sensors, actuators, and fieldbus systems exposed to dust, moisture, and temperature extremes. Its multi-pin configurations and coding options allow precise differentiation of signals and power lines within complex automation installations. The connector withstands continuous mechanical engagement cycles and environmental stressors, fitting seamlessly into automation control cabinets and outdoor instrumentation. By ensuring reliable signal integrity and streamlined wiring, it supports enhanced operational efficiency and system diagnostics, crucial for process engineers and automation integrators managing critical manufacturing workflows.

FAQ

What materials are used in the M12 Panel Mount Connector to ensure durability?

We manufacture the M12 Panel Mount Connector with a PA+GF insert housed in durable Nylon, combined with FKM or silicone O-rings for sealing. This material selection ensures robustness and an IP67 waterproof rating, making it ideal for harsh and outdoor environments as a trusted waterproof panel mount connector.

Can you provide customization options for M12 panel mount connectors?

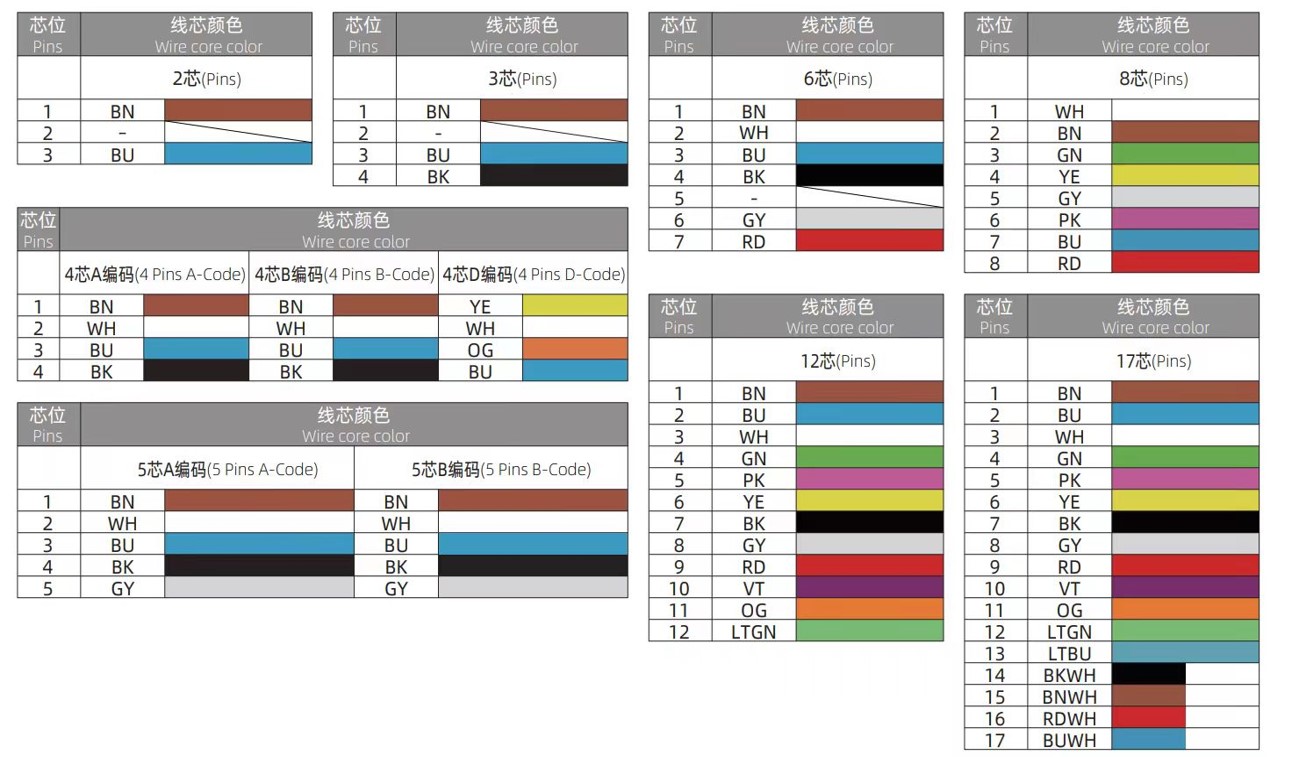

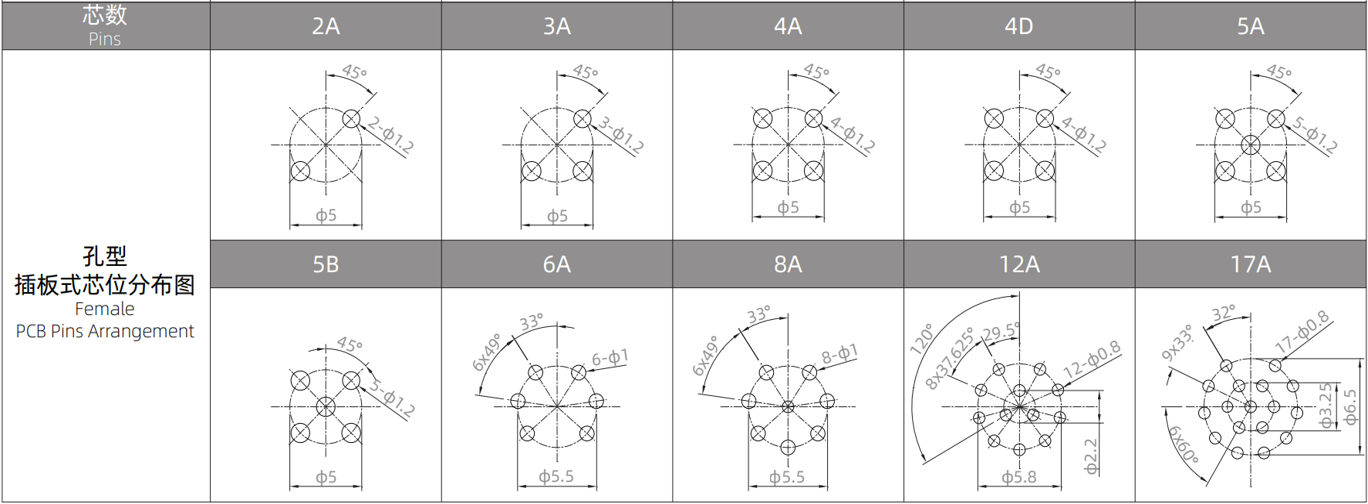

Yes, we offer multiple configurations for our M12 panel mount connectors, including pin counts of 3, 4, 5, 8, 12, and 17 with coding options A, B, and D. Termination methods also include soldering or wires welded/PCB, allowing customized solutions suited to your specific industrial needs.

How do I install the M12 bulkhead connectors in an existing control panel?

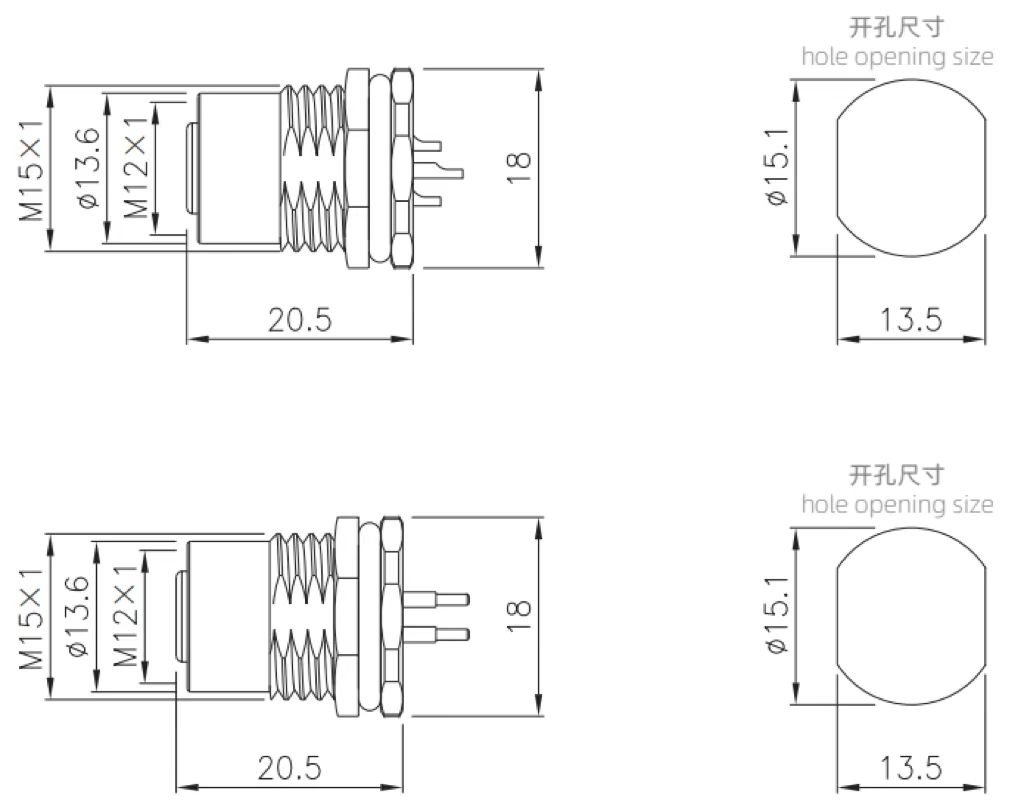

Our M12 bulkhead connectors feature a front-fastened, panel-mount design for secure and straightforward installation in control enclosures. The connectors are designed to fit standard panel cutouts (details available upon request) and maintain IP67 sealing for reliable performance in rugged field conditions.

What is your typical delivery time and quality assurance for these electrical connectors?

We maintain a 98.9% on-time delivery rate and enforce strict quality control standards aligned with ISO9001 & ISO14001 certifications. Every batch undergoes pre-production sampling and final inspection, ensuring our electrical connector manufacturers meet your reliability expectations consistently.
