M8 field wireable 3 4 5 6 8pin female elbow 90°cable joint electrical outdoor connectors

Brief Information:

  • Model: M8 connector
  • Gender: Female
  • Available numbers of contacts: 3pin 4pin 5pin 6pin 8pin
  • Coding: A B coding
  • Termination: Soldering & screw type
  • Orientation: Right angle 90°
down load to pdf

M8 assembly connector technical data:

Contacts poles: 3pin 4pin 5pin 6pin 8pin
Contact arrangement:
Coded: A A B A A
Rated current: 3A 1.5A
Rated voltage: 60V 30V
Wire gauge: 24AWG/0.25MM² 26AWG/0.14MM²
Contacts termination: Soldering & screw type Soldering
Connector gender: Female
Waterproof protection: IP67(1m depth water 30 miuntes)
Connector insert: PA+GF
Orientation: Right angle 90°
Screw thread: M8*1.0
O-ring: FKM or silicon
Suitable cable OD: 3.5-5mm
Temperature range: -25°C~+85°C
Connector locking system: Screw
Contacts plating: Brass with gold plated
Shell material: Nylon/PA
Pollution degree: III
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Mechanical operation： ＞500 times
EMC shielding: Not available
Reference standard: IEC 61076-2-104

Description:

The M8 waterproof and dustproof assembled outdoor connectors are designed for outdoor environments, and they are available in a variety of mounting methods and protection levels to suit different application requirements. Here are some key features and options:
  • 1Number of cores: Provide 3 core, 4 core, 5 core, 6 core, 8 core and other core configurations to meet different signal and data transmission needs;
  • 1Welded and locking screw types: M8 connectors are available in both solder and locking screw mounting modes. The welded type is usually used for permanent connections, while the lock screw type facilitates field installation and maintenance;
  • 1IP67 Waterproof rating: Many M8 connectors are designed with an IP67 water and dust rating, which means they are able to prevent dust from entering and can last up to 30 minutes in water up to a meter deep without damage;
  • 1Straight head and elbow: Straight head connectors are the most common and provide a straight line connection. Elbow connectors provide angular connections for situations where space is limited or the direction of the cable needs to be changed;
  • 1Male versus female: Male connectors are usually used on the active end and can be plugged into the female connector. The female connector has a socket and can accept the insertion of the male connector;
  • 1Field installation: Field-installable M8 connectors allow users to assemble at the final installation site, which helps reduce the need for prefabricated cables, saving time and cost;
  • 1With shielding: M8 connector models also offer shielding type, which is important to prevent signal interference in complex electromagnetic environments.
More information about M8 connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag then put all in carton
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

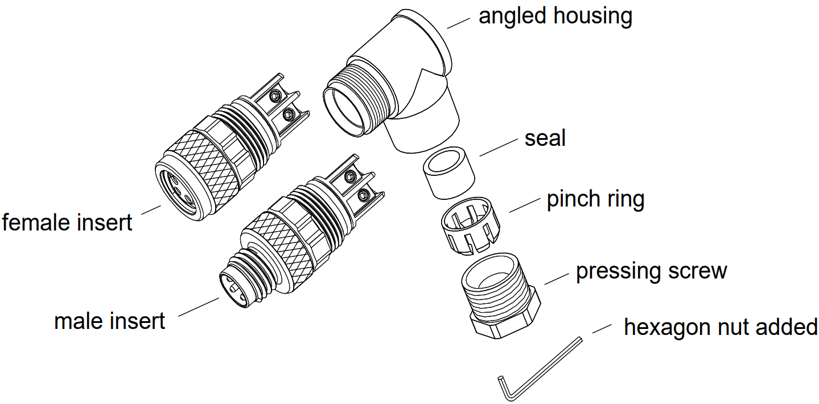

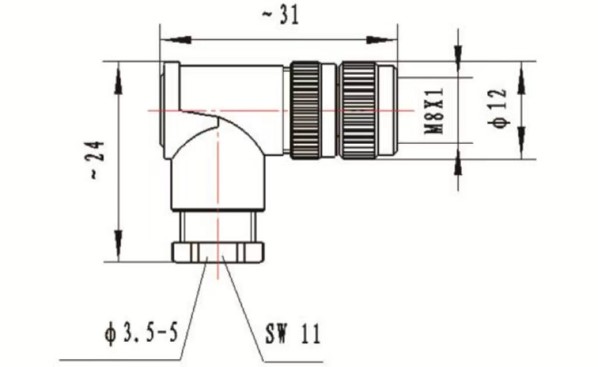

  • M8 female elbow field wireable type connector drawing

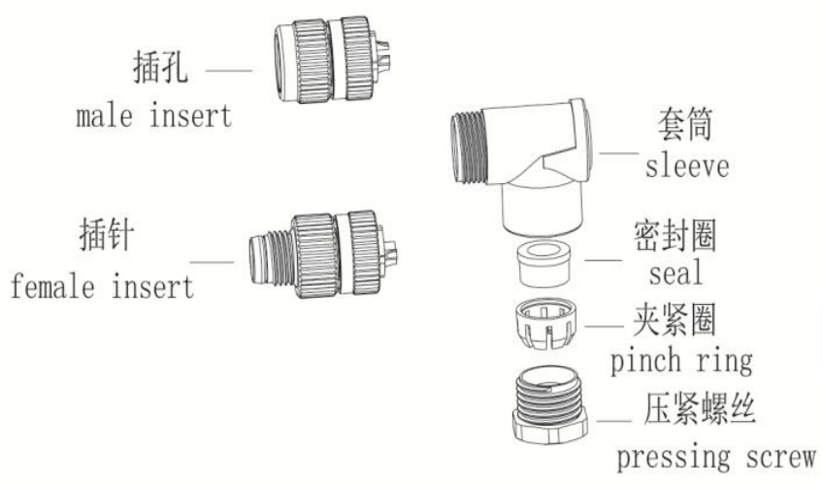

  • M8 waterproof connector locking screw types
  • M8 connector welded type

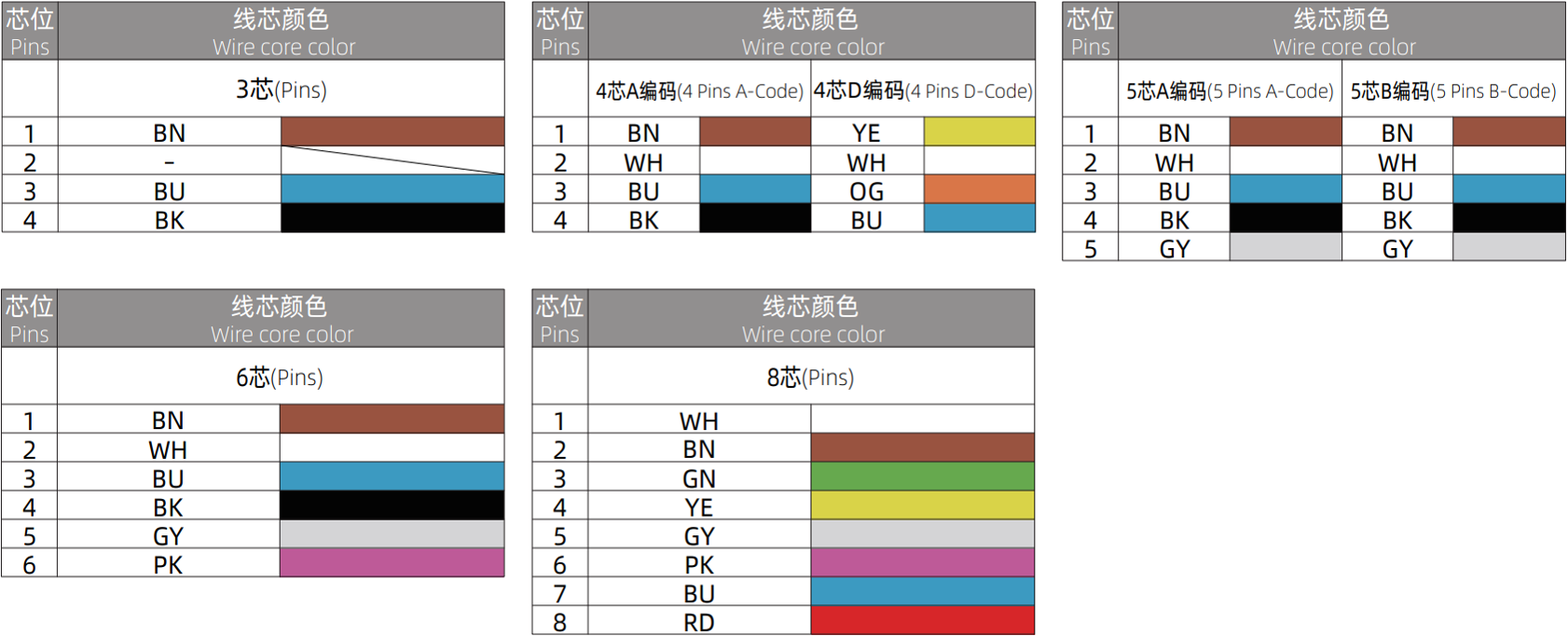

  • M8 circular connector wire definition
