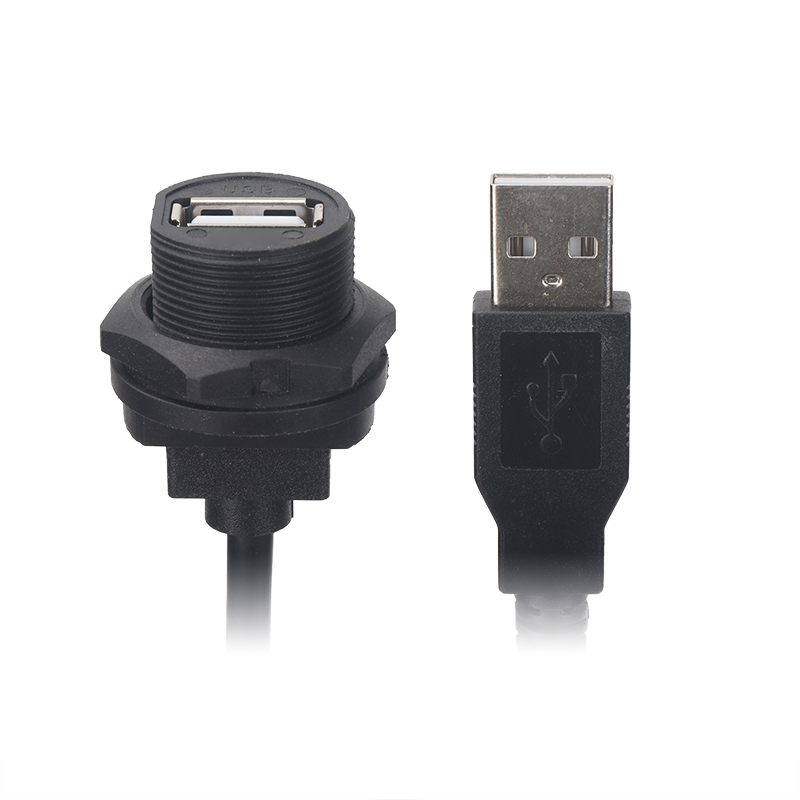

USB A female panel mount socket to overmold male 2.0 3.0 ip67 electrical waterproof connectors

Brief Information:

  • Model: USB A connector
  • Gender: Female to male
  • Available numbers of contacts: 9(USB 3.0) 4(USB 2.0)
  • Locking system: Threaded and bayonet
down load to pdf

USB A connector technical data：

Gender: Termination 1 Termination 2
Female Male
Contact diameter x number: 9(USB 3.0)    4(USB 2.0)
Application: Power,signal,data
Temperature range:  -40~+105°C
Coupling: Thread and bayonet
IP rating: IP67
Rated voltage: 30V
Rated current: 1.5A
Insulation impedance: 2000MΩ
Durability: ≥500 mating cycles
Contact material: Brass
Shell material: Thermoplastic PA66, flame retardant grade: V-0
Waterproof o-ring: silicon gel
Certification: CE RoHs REACH IP67
Suitable cable OD: OD5.5-7.0mm (24-26AWG)

Description about USB A connectors:

USB Type A Waterproof Connector is a design that is used for data/power transmission in harsh or demanding environments. They are usually equipped with a high level of protection, such as IP67 or IP68, to ensure reliable operation in dusty, humid or underwater environments. Here are some features and applications of USB Type A Waterproof Connectors:
1: Protection level: Many USB Type A Waterproof Connectors have reached IP67 or IP68 protection level, which means they can prevent dust from entering and can work underwater for a long time without damage.
2: Materials and design: These connectors are usually made of durable materials, such as high-quality PC material that meets UL746C (F1 grade), with good UV resistance and flame resistance. Rubber gaskets may meet UL50E/UL157 standards and have the characteristics of being resistant to stretching, not breaking, and aging.
3: Application scenarios: USB Type A Waterproof Connectors are widely used in environments that require waterproof or dustproof protection, such as industrial equipment, outdoor equipment, medical instruments, and underwater equipment. They can be used for data transmission, device charging, or other power management applications.
4: Compatibility: Although USB Type-C interface with its dual-sided insertion design and higher power output is gradually becoming the new industry standard, USB Type-A interface is still widely used in various devices, including PCs, laptops, game consoles, and smart TVs. USB Type A Waterproof Connectors usually support various USB versions, including USB 1.0, USB 2.0, USB 3.0/3.1, ensuring good compatibility and backward compatibility.
5: Installation method: Some USB Type A Waterproof Connectors provide multiple installation methods, such as quick locking or threaded connection, to meet different application needs.
6: Performance parameters: The operating voltage of these connectors is usually around 30V, the rated current can reach 1.5A, and they can work in the temperature range of -20°C to +80°C. They also have a plastic or metal shielded design to improve signal integrity and reduce interference.
More information about USB A connectors may you are concerned:
HS Code: 8538900000
Customzied: Acceptable
MOQ: 1pcs for normal type
Package: One pcs in PE bag
Single weight: /
Shipping method: By express or by sea
Shipping date: Samples:3-7 working days

Bulk order:Negotiable
Environmentally friendly: Yes, CE,RoHs and REACH complianced

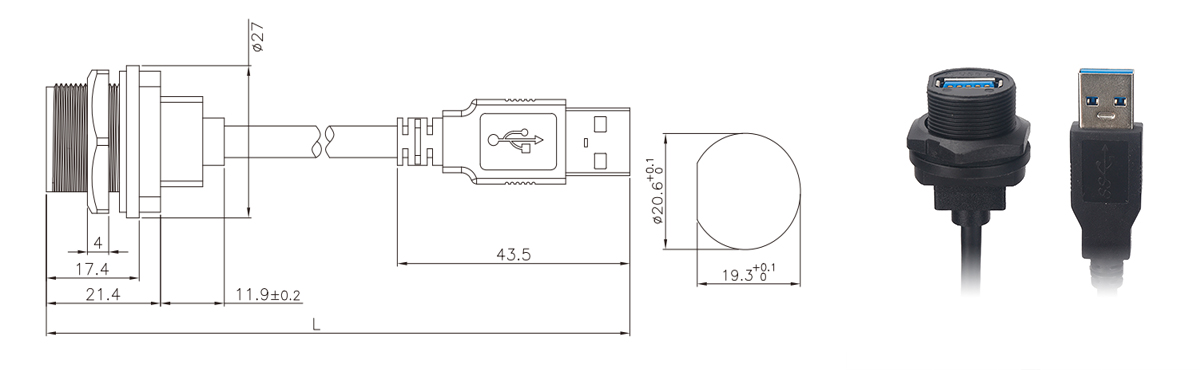

  • USB female to male connector size information: 3.0 thread Type

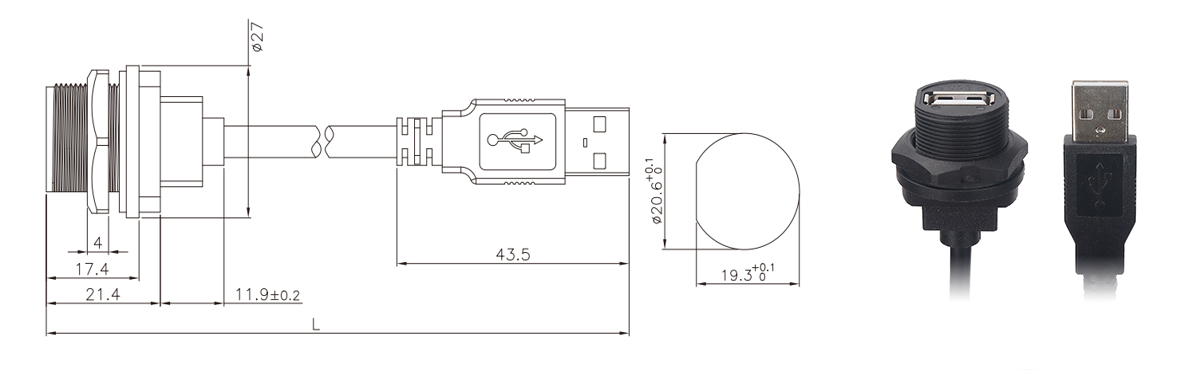

  • USB female to male connector size information: 2.0 thread Type

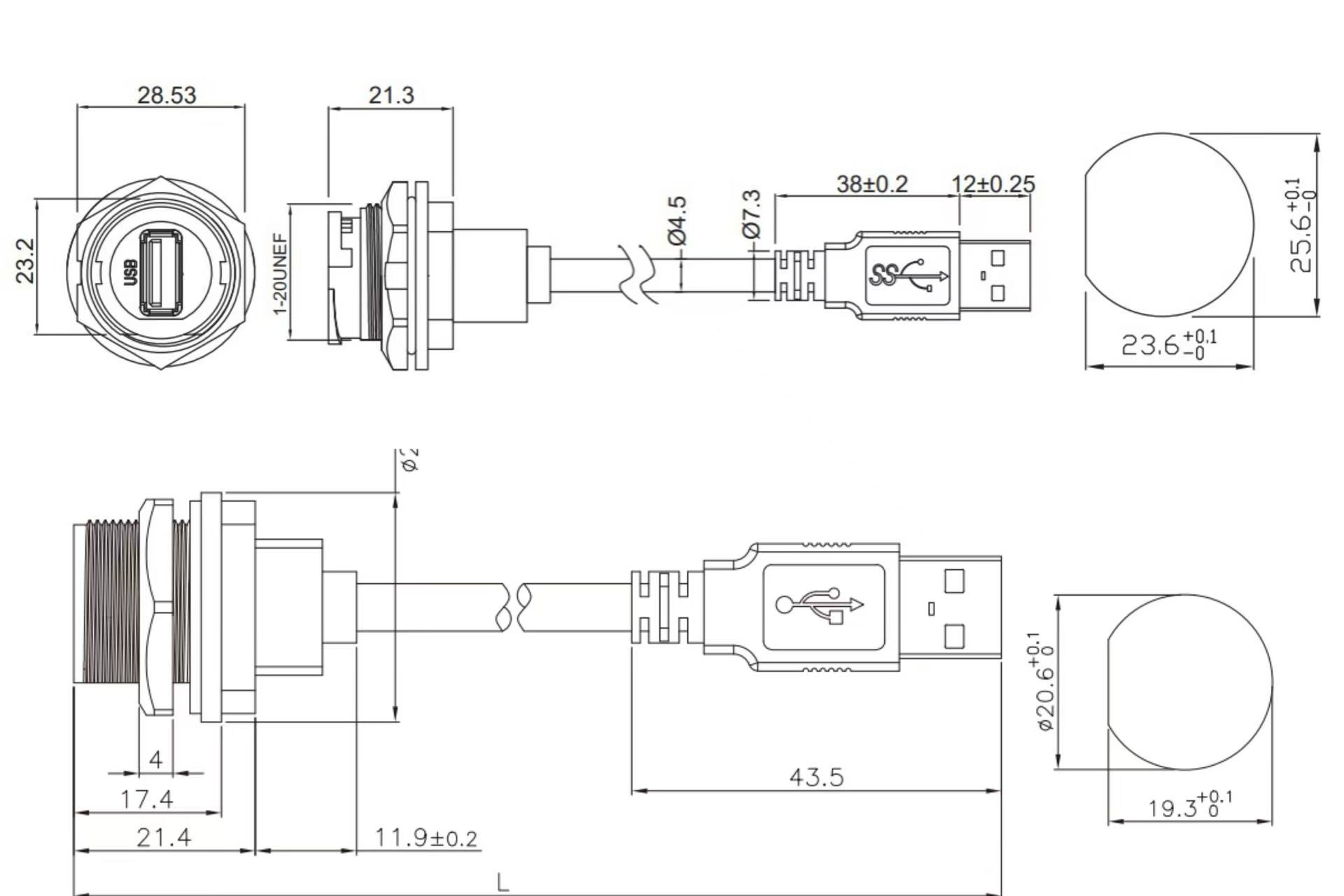

  • USB female to male connector size information: 3.0 thread Type
  • USB female to male connector size information: 2.0 thread Type



Product Description



Functional role tailored for demanding connectivity environments
This usb panel mount connector is engineered to provide dependable connections for industries requiring rugged solutions. Targeted at electrical engineers, procurement managers, and system integrators, it meets the need for seamless data and power transmission in harsh conditions. As a robust product from a recognized usb connector manufacturer, it suits applications demanding secure panel mounting and resistance to environmental factors. The connector’s compatibility with popular overmold male USB 2.0 and 3.0 interfaces simplifies integration into existing systems, benefiting product designers focused on reliability and ease of installation.



Technical specifications ensuring optimal electrical and mechanical performance
Designed with a combination of threaded and bayonet locking mechanisms, this panel mount usb connector guarantees mechanical stability and minimizes accidental disconnections. Featuring brass contacts for enhanced electrical conductivity, it accommodates cables with an outer diameter of 5.5-7.0mm (24-26 AWG), rated at 30V and 1.5A. Its IP67 waterproof rating protects against dust and water immersion up to 1 meter, supported by a silicon gel waterproof O-ring seal and a flame-retardant thermoplastic PA66 shell. Compatible with both USB 2.0 (4 contacts) and USB 3.0 (9 contacts), this connector delivers data rates and electrical reliability compliant with international standards including CE, RoHS, and REACH.



Industry applications emphasizing reliability and environmental resilience
This solution enables secure connectivity in industrial machinery, outdoor equipment, and marine electronics exposed to moisture and contaminants. As a waterproof usb connector, it suits automotive electronics requiring panel mount usb connector solutions that maintain signal integrity under vibration and splash environments. Additionally, medical device manufacturers benefit from this usb circular connector’s ability to sustain signal and power transmissions in wet clinical settings. Fremi’s product enhances workflow continuity in harsh operating conditions by providing a rugged interface that supports repeated connection cycles with durability exceeding 500 mating acts.





Product Advantages



Structural and design innovations for integration and protection
The usb panel mount connector’s design integrates a dual locking system combining threaded and bayonet features for enhanced mechanical robustness and ease of assembly. Its panel mount configuration facilitates secure installation into equipment housings, supporting modular system designs favored by professional users. Made by a trusted usb connector manufacturer, the connector shell employs durable thermoplastic PA66 with flame-retardant properties to mitigate fire hazards in industrial environments. Additionally, the waterproof usb connector incorporates a silicon gel O-ring that effectively seals against dust and moisture ingress, fulfilling stringent IP67 requirements for system reliability.



Performance outcomes and user-centric operational benefits
This panel mount usb connector supports high-level electrical performance with brass contacts that reduce resistance and prolong signal fidelity. Its capability to handle USB 2.0 and 3.0 contact configurations provides flexibility for various application needs, optimizing return on investment. From a maintenance perspective, the connector withstands extreme temperature ranges and shows durability through 500+ mating cycles, reducing downtime and replacement frequency. The practical compatibility with cable OD 5.5-7.0mm simplifies wiring tasks. System integrators value this waterproof usb connector for its proven reliability under demanding environmental and mechanical stresses.





Use Scenarios



Industrial machinery connectivity in harsh environmental conditions
In heavy industrial settings with frequent exposure to dust, moisture, and mechanical vibration, the usb panel mount connector ensures stable data and power transmission critical for machine control and monitoring systems. Its IP67 rating and robust locking system prevent ingress and accidental disconnection, supporting continuous operation. As a panel mount usb connector, it fits securely into control panels, enabling efficient device connections that comply with CE and RoHS standards. This compatibility benefits facility engineers seeking durable waterproof usb connector solutions to maintain uptime and safety in challenging work environments.



Marine electronics requiring waterproof and corrosion-resistant connections
Marine applications demand connectors resistant to splash, immersion, and saltwater corrosion. Utilizing this usb circular connector facilitates secure signal and power interfaces on boats and ships where environmental exposure is intense. The connector’s thermoplastic PA66 shell and silicon gel O-ring provide corrosion resistance and prevent water ingress consistent with IP67 classifications. Designed for panel mounting, the connector integrates seamlessly into vessel control panels and navigation equipment, helping marine technicians achieve reliable and compliant assembly that withstands the marine operational workflow’s harsh realities.





FAQ



What materials are used in your waterproof USB connector?
Our waterproof USB connector uses a durable thermoplastic PA66 shell with flame-retardant properties and brass contacts for excellent electrical conductivity. A silicon gel O-ring ensures IP67 waterproof protection, making it ideal for harsh industrial and outdoor applications.



Can you customize the USB panel mount connector to fit specific requirements?
Yes, we accept customization requests on our USB panel mount connector with a low MOQ of 1 piece for standard types. Our R&D and production teams work closely with you to tailor designs that meet your precise technical and environmental needs.



How do I install the USB A female panel mount socket securely?
The connector features threaded and bayonet locking mechanisms ensuring a stable and secure panel mount installation. This system prevents disconnection under mechanical stress, providing reliable performance in demanding industrial settings.



What are the typical lead times and certifications for your USB connectors?
Samples usually ship within 3-7 working days. Our USB connectors comply with CE, RoHS, and REACH certifications, guaranteeing safety and environmental standards compliance. We maintain reliable delivery to support your production schedules.
