Product Details Display

Functional Deployment and Target User Profile

The M12 panel-mount 3-17pin female shielding socket sleeve is engineered for system integrators and electrical engineers needing a reliable circular interface for panel-mounted applications. Offered by specialized m12 connector manufacturers and circular connector manufacturers, it supports diverse pin counts and coding schemes to accommodate signal, data, and power lines. Its front-fastened panel mount design and solder termination optimize installation efficiency and field servicing. Target users include OEMs, industrial automation engineers, and maintenance teams requiring a waterproof panel mount connector solution that combines mechanical robustness with straightforward integration.

Technical Specifications and Performance Metrics

Engineered to meet stringent technical requirements, this m12 panel mount connector offers an IP67 waterproof rating, ensuring protection against dust and submersion up to one meter for 30 minutes. The connector features contact variants from 3 up to 17 pins with A, B, and D coding to prevent misconnection. The use of brass shells with nickel plating and PA+GF inserts delivers mechanical durability and corrosion resistance, while EMI shielding minimizes signal degradation in industrial environments. Temperature tolerance ranges from -25°C to +80°C, with voltage capabilities up to 250V and currents from 1.5A to 4A, depending on pin configuration. UL94 HB-rated flame resistance and RoHS compliance underscore its suitability for safety-conscious sectors.

Real-World Application in Industry Environments

This waterproof panel mount connector serves critical roles in sectors such as industrial automation, marine equipment, and sensor networks. It facilitates secure, shielded connections in control panels and outdoor enclosures exposed to environmental stressors. Its compatibility with a broad range of M-series connectors allows seamless integration across multiple device interfaces and cable harness assemblies. Users benefit from reduced system downtime and enhanced signal integrity in settings requiring compliance with IEC standards and harsh-condition durability. Consequently, the connector supports streamlined maintenance, effective field replacements, and scalability for complex control and sensor systems.

Product Advantages

Design and Structural Superiority

The modular structure of this m12 panel mount connector includes front-fastened mounting to simplify installation and maintenance in confined panel spaces. Its construction from brass with nickel plating and epoxy resin sealing guarantees resistance to mechanical wear, corrosion, and chemical exposure. Integrated shielding offers superior EMI/RFI suppression, a crucial factor for sensitive electronics. The availability of multiple thread sizes and a wide pin range facilitates customization and compatibility with diverse industrial equipment. Such robust design elements collectively deliver a durable and reliable interface developed by experienced circular connector manufacturers.

Operational Performance and User-Centric Benefits

From a usability perspective, the connector’s solder termination ensures secure wiring connections that withstand repeated mechanical cycles exceeding 500 operations. Its IP67 rating provides dependable waterproof protection essential for outdoor or humid environments, enhancing system reliability and uptime. Lightweight yet mechanically resilient, the connector supports swift replacement and diagnostic activities by field technicians. Shielding capabilities minimize signal interference, improving communication accuracy in automation and machinery control. Overall, this socket connector solution balances high performance with practical usability to meet the demands of professional users and system builders.

Use Scenarios

Control Panel Integration in Industrial Automation

In manufacturing plants and process control systems, the M12 panel mount connector functions as a critical interface for wiring sensors, actuators, and control devices within control panels. The environment typically involves exposure to dust, vibrations, and occasional moisture ingress. This waterproof panel mount connector ensures compliance with IP67 standards protecting the electrical contacts from contamination, while EMI shielding preserves signal quality critical for precise automation. It integrates effortlessly with existing M-series circular connectors and cable assemblies, facilitating efficient system construction, maintenance, and upgrades by automation engineers and system integrators.

Marine and Outdoor Equipment Electrical Interfacing

Marine vessels and outdoor industrial installations demand connectors that withstand harsh weather conditions, saltwater exposure, and mechanical stresses. As a robust m12 bulkhead connector, this product provides secure, shielded, and waterproof connections essential for power distribution and data transmission in maritime electronics and outdoor sensor arrays. Its corrosion-resistant brass housing and high-grade sealing materials meet stringent durability and environmental compliance requirements. Integration into marine enclosures and outdoor panels allows technicians to maintain consistent operational performance while reducing the risk of electrical faults due to environmental factors.

FAQ

What materials are used in your M12 panel mount connectors?

Our M12 panel mount connectors feature brass shells with nickel plating for durability and corrosion resistance. Connector inserts are made from PA+GF, while sealing uses FKM or silicone O-rings and epoxy resin to ensure waterproof IP67 protection and chemical resistance.

Can you provide customized pin configurations and coding options?

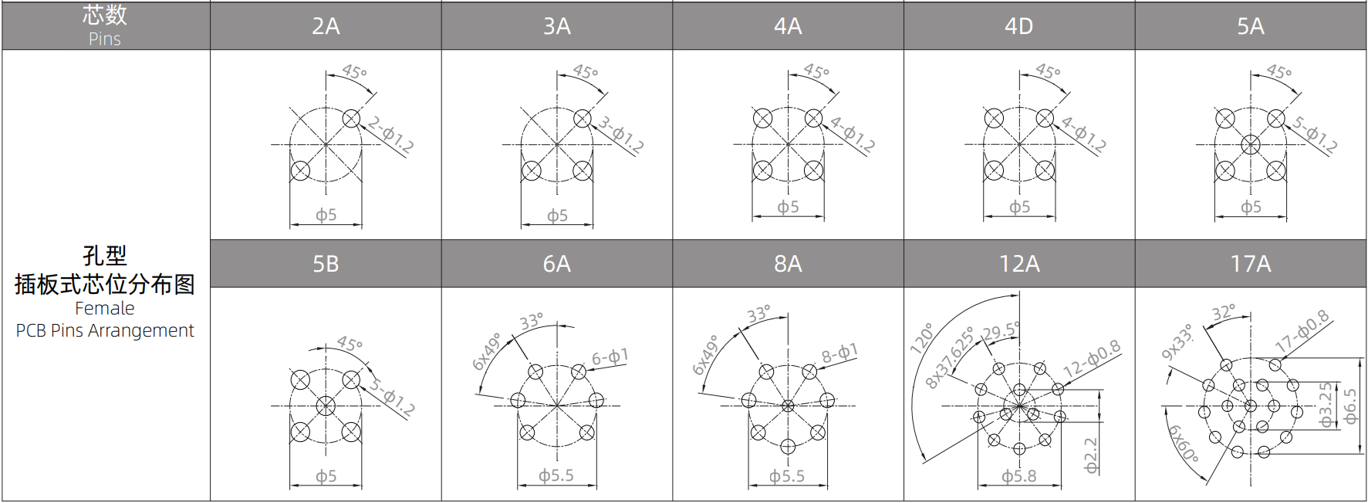

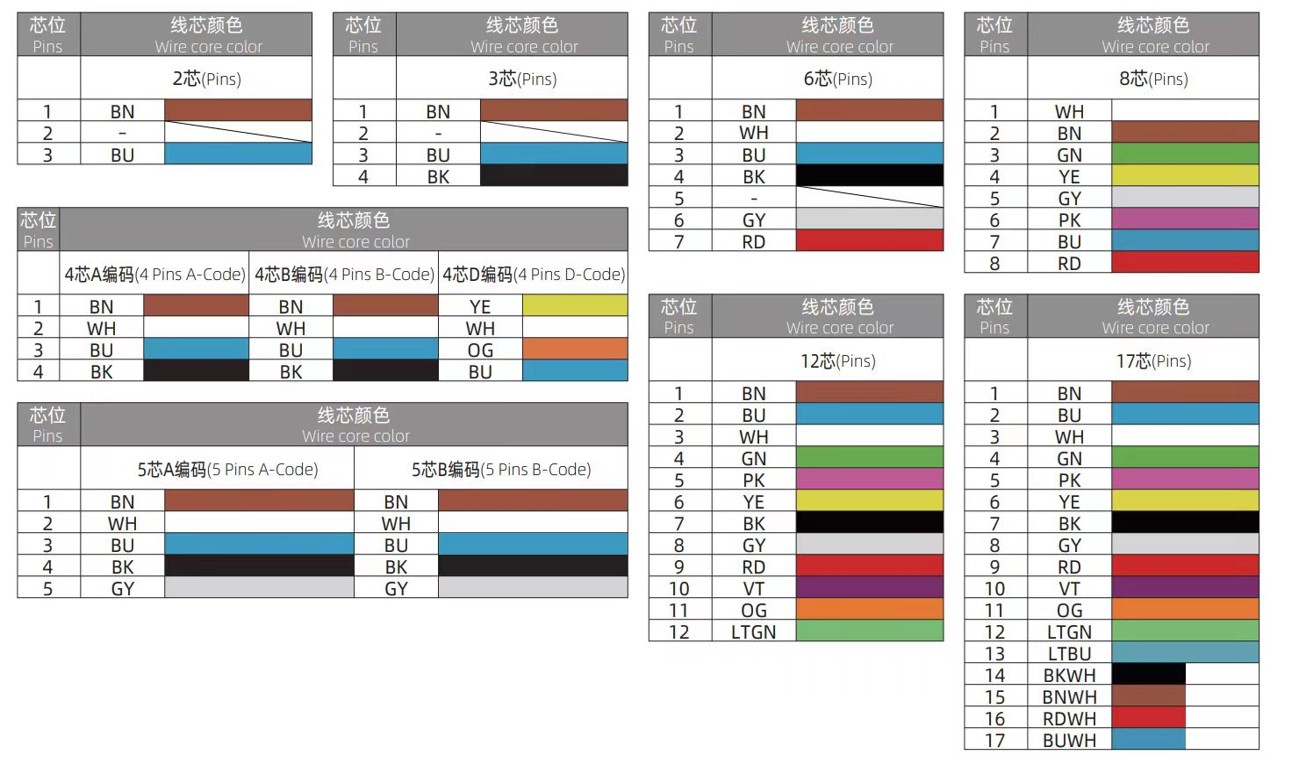

Yes, we offer multiple contact arrangements including 3, 4, 5, 8, 12, and 17 pins with coding options A, B, and D. This flexibility helps you choose the ideal waterproof panel mount connector for your specific electrical and signal transmission requirements.

How do I mount and wire your panel-mount connectors?

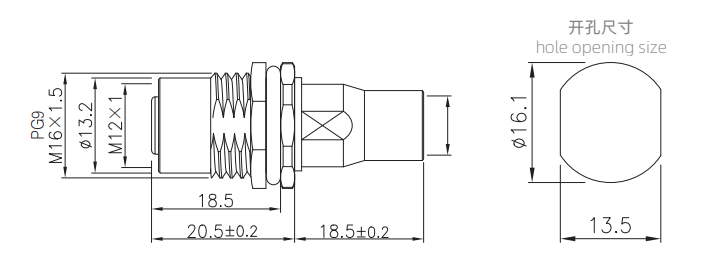

Our connectors use a front-fastened panel-mount design for secure installation and simplified assembly. Termination is done by soldering, ensuring reliable, long-lasting connections suitable for industrial environments demanding robust socket connectors.

What logistics and support do you offer for international buyers?

We maintain ISO 9001 & 14001 certified production with efficient quality control. Supported by fast logistics and a 24-hour online team, we ensure timely delivery and responsive technical assistance for all circular connector manufacturers engagements worldwide.
