Product Details Display

Targeted for Compact Industrial Systems and Control Panels

This m12 panel mount connector is engineered specifically for professionals requiring secure, compact solutions in embedded industrial and automation systems. Its right-angle orientation facilitates streamlined PCB panel integration where space is constrained. Electrical engineers and procurement specialists benefit from its compatibility with multiple contact configurations — ranging from 3 to 17 pins — and codings A, B, and D, allowing flexible wiring and signal management. OEMs, system integrators, and automation equipment manufacturers use this solution for sensor interfaces, actuator connections, and fieldbus networks that demand dependable, waterproof connectors to maintain reliable operation under harsh conditions. The product aligns well with users seeking connectors that support high-density wiring while ensuring durability in moist or dusty environments.

Technical Specifications and Robust Build Quality Detail

This waterproof panel mount connector features an M12x1.0 screw-thread with a screw-locking system ensuring stable and vibration-resistant mounting on panels. The brass shell with nickel plating paired with PA+GF inserts boosts mechanical strength and corrosion resistance. It operates within a temperature range from minus 25 to plus 80 degrees Celsius and meets IP67 standards for water and dust ingress protection, making it suitable for challenging or outdoor applications. The connector accommodates various wire gauges (22, 24, and 26 AWG equivalents) with rated currents up to 4A and voltages reaching 250V in some configurations. The connector’s sealing includes FKM or silicone O-rings and epoxy resin for superior moisture resistance. Mechanical operation exceeds 500 mating cycles, guaranteeing reliable long-term electrical performance. These technical features position the connector as a practical choice among circular connector manufacturers supplying ruggedized device interfaces.

Industrial Connectivity for Automation and Fieldbus Systems

The design of this waterproof panel mount connector caters to demanding industrial networking environments such as automation control panels, sensor-packed instrument clusters, and fieldbus or Ethernet-based data transmission systems. Its right-angle profile fits snugly within compact enclosures and backplane panel applications, delivering secure and sealed connections that resist environmental hazards like moisture, dust, and mechanical shocks. Manufacturers rely on the connector for retrofit scenarios as well as new designs requiring IP67-rated robust connectors that ensure system uptime and compliance with IEC 61076-2-101 standards. Its versatile pin and coding options allow integration into multifaceted signal and power circuits. As an offering from established electrical connector manufacturers, it advances system architects’ ability to create resilient and maintainable industrial connectivity infrastructures.

Product Advantages

Design and Structural Integration Benefits

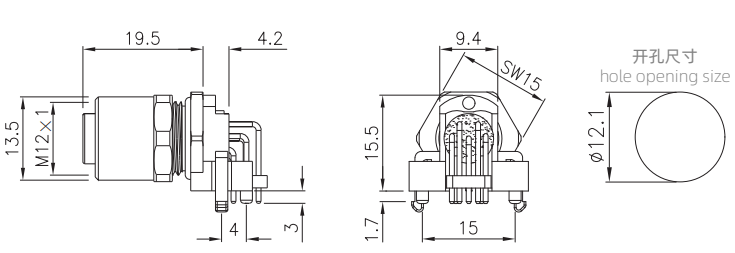

The connector’s right-angle form factor is deliberately designed to optimize PCB panel space without compromising mechanical strength or connector accessibility. This carefully engineered profile facilitates tight installations in control boxes and instrumentation panels often encountered in industrial automation. Constructed with a nickel-plated brass shell and a durable PA+GF insert, it delivers high resistance to corrosion and mechanical wear typical of rugged environments. The O-ring and epoxy resin sealing system augment ingress protection to IP67 levels, addressing moisture and particulate challenges encountered on-site. The standardized M12x1.0 thread and screw-locking mechanism ensure secure mounting with minimal risk of decoupling under vibration or shock conditions. Such systematic design considerations elevate this product among reliable m12 bulkhead connectors widely trusted for panel integration in professional settings.

Performance Reliability and User-Centric Advantages

With validated mechanical operation exceeding 500 mating/unmating cycles, this connector offers longevity critical to maintenance-sensitive environments. Its diverse pin counts and coding variations enable straightforward customization for various signal and power requirements, reducing installation errors. The waterproof panel mount connector’s compatibility with standard PCB DIP terminations expedites assembly and prototyping workflows, enhancing operational efficiency for engineering teams. This interface supports current up to 4A and voltages up to 250V, aligning with typical industrial signal standards and ensuring safe system operation. The secure screw-locking system notably simplifies connection stability, enhancing uptime by preventing accidental disconnections. These features collectively deliver dependable performance, making it a preferred choice among m12 connector manufacturers focused on delivering solutions that meet stringent industrial criteria.

Use Scenarios

Panel-Mounted Sensor Interfaces in Confined Industrial Enclosures

In manufacturing and automation sectors, this m12 panel mount connector is frequently deployed within compact sensor housing in machine control cabinets and field instrumentation enclosures. It enables the integration of sensor signals into centralized control systems with guaranteed IP67 protection against moisture and dust ingress, essential in dusty production floors or outdoor installations. Its right-angle design reduces required panel depth, making it suitable when space constraints are paramount. The connector integrates seamlessly with PCB-mounted devices, supporting rapid sensor replacements or upgrades. Additionally, coding options minimize wiring mistakes in multi-sensor networks. This ensures compliance with industrial safety and reliability standards, streamlining system maintenance cycles and reducing downtime associated with environmental failures.

Retrofit and Maintenance Use in Outdoor or Damp Equipment Enclosures

For existing industrial infrastructure or field installations exposed to harsh weather or wet environments, this waterproof panel mount connector is employed to replace worn or outdated connectors on control panels and instrumentation boxes. Its IP67 rating and robust sealing materials guarantee protection against rain, humidity, and dust ingress, preserving circuit integrity and minimizing operational interruptions. The connector’s right-angle orientation aids in fitting into constrained panel layouts without extensive redesign. The broad selection of pin configurations supports various updated signal demands in control and fieldbus applications. This flexibility allows maintenance personnel to retrofit legacy equipment with minimal disruption, meeting industry standards for ruggedized electrical connections while enhancing the lifespan and reliability of outdoor assets.

FAQ

What pin configurations and coding options are available for the M12 panel mount connector?

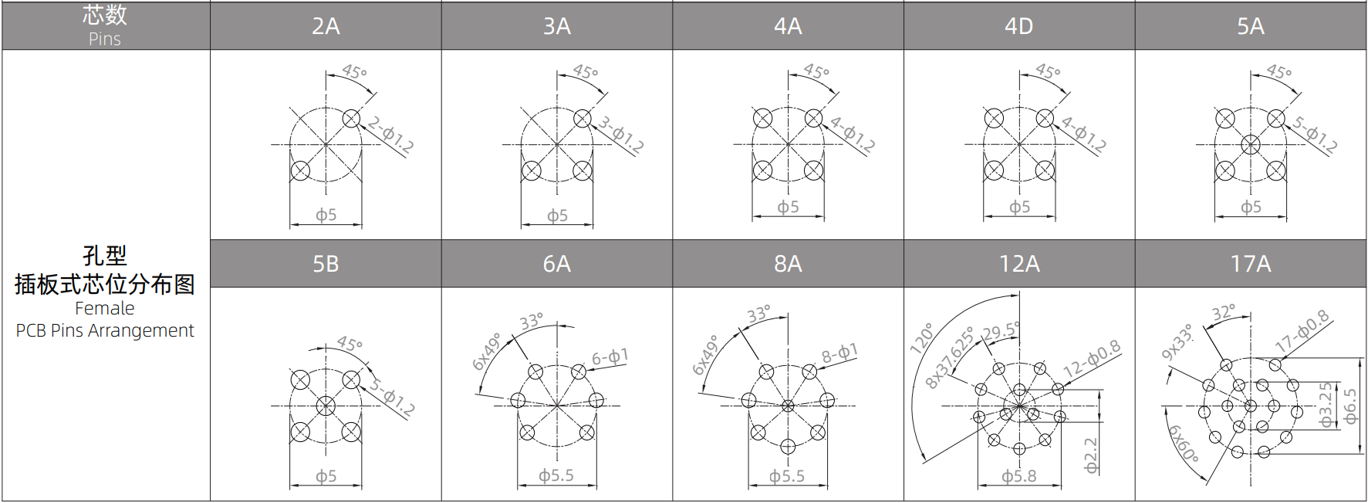

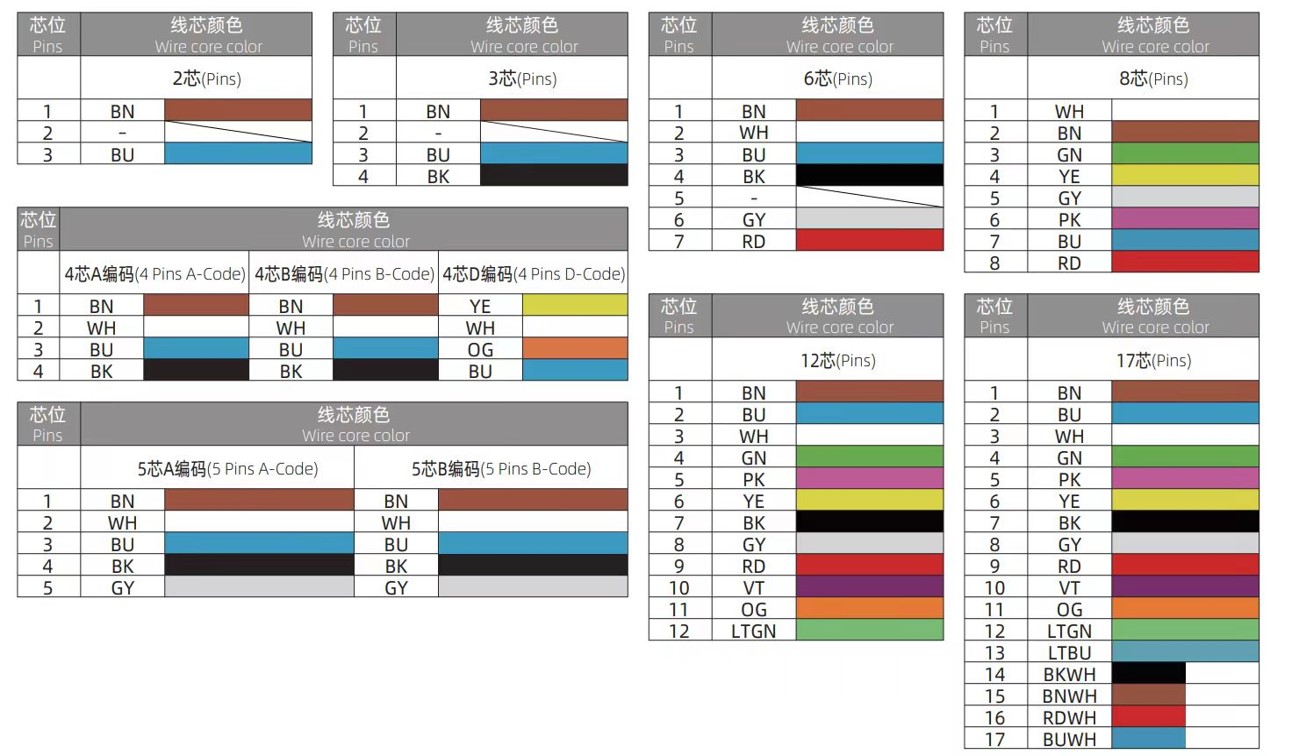

We offer multiple pin configurations including 3, 4, 5, 8, 12, and 17 pins with coding options A, B, and D to suit various industrial wiring needs. This flexibility supports different signal and power requirements in your applications using our m12 panel mount connector.

Can the waterproof M12 connector be customized for specific requirements?

Yes, we provide custom solutions tailored to your project. Whether you need specific pin counts, coding, or tailor-made wire harness assemblies, our capabilities include manufacturing bespoke m12 connector manufacturers components designed for rugged waterproof performance.

What materials and sealing methods ensure the connector’s waterproof features?

Our connectors use a brass shell with nickel plating for durability, PA+GF inserts, and O-rings made from FKM or silicone. We apply epoxy resin sealing to protect against moisture and dust, ensuring IP67-rated reliability for harsh environments.

How should I install and maintain the right-angle M12 panel mount connector to ensure durability?

We recommend securing the connector using its M12x1.0 screw-thread with the integrated screw-lock system for firm panel mounting. The connector supports over 500 mating cycles, but regular inspection of O-rings and proper screw torque help maintain the waterproof seal and long-term reliability.
