M16 IP40 2-24pin J09 male field wireable round automotive electrical connectors
| Contacts poles: | 2pin | 3pin | 4pin | 5pin | 5pin(stereo) | 6pin（din） | 7pin |
| Contact arrangement: |  |
 |
 |
 |
 |
 |
 |
| Rated current: | 7A | 7A | 6A | 6A | 6A | 5A | 5A |
| Rated voltage: | 250V | 250V | 250V | 250V | 250V | 250V | 125V |
| Contacts poles: | 7pin(din) | 8pin(din) | 12pin | 14pin | 16pin | 19pin | 24pin |
| Contact arrangement: |  |
 |
 |
 |
 |
 |
 |
| Rated current: | 5A | 5A | 5A | 3A | 3A | 3A | 1A |
| Rated voltage: | 125V | 125V | 60V | 60V | 60V | 60V | 60V |
| Wire gauge: | 28-16AWG/Customized | ||||||
| Connector gender: | Female | ||||||
| Contacts termination: | Soldering | ||||||
| Waterproof protection: | IP40 | ||||||
| Connector insert: | PA+GF | ||||||
| Orientation: | Straight 180° | ||||||

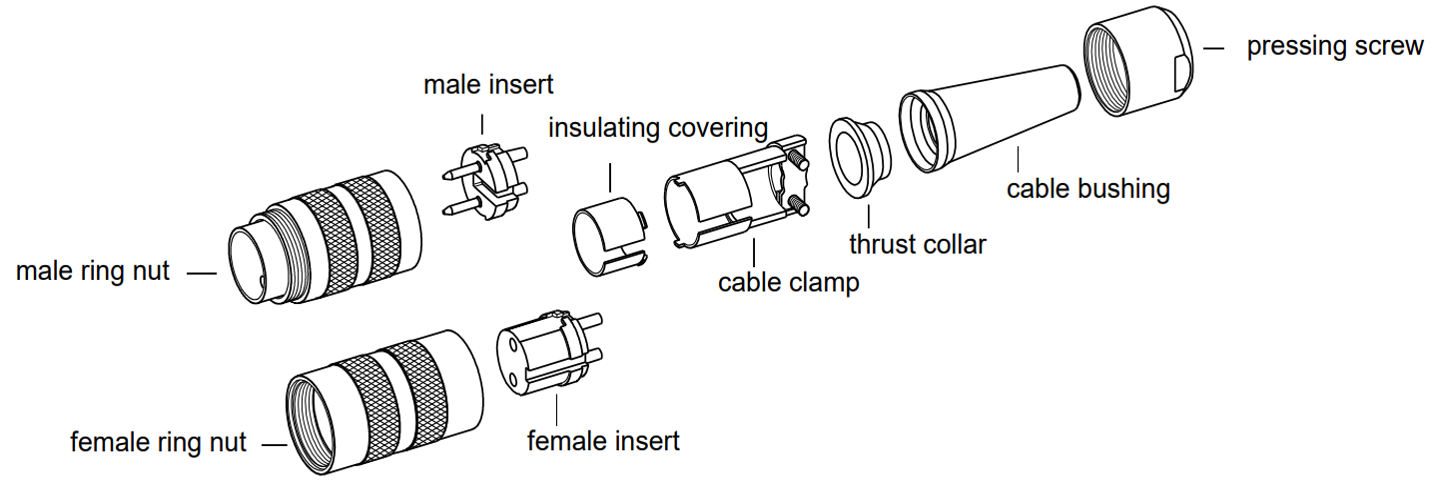

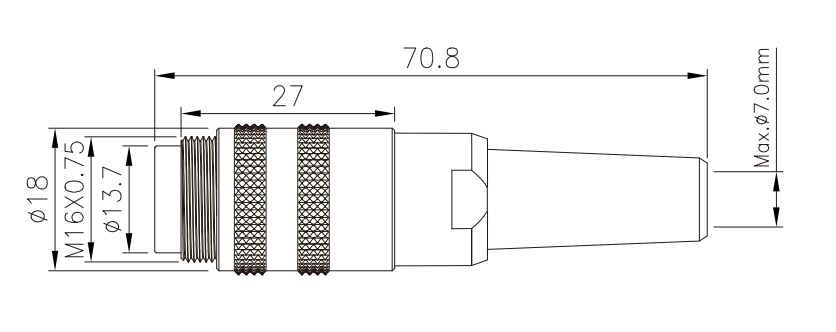

| Screw thread: | M16*0.75 | ||||||
| Temperature range: | -25°C~+80°C | ||||||
| Connector locking system: | Screw | ||||||
| Contacts plating: | Brass with gold plated | ||||||
| Shell/Nut/Screw: | Brass with nickel plated | ||||||
| Pollution degree: | III | ||||||
| Insulation resistance: | ≥100MΩ | ||||||
| Contact resistance: | ≤5mΩ | ||||||
| Mechanical operation： | ＞500 times | ||||||
| EMC shielding: | Not available | ||||||
| Reference standard: | IEC 61076-2-106 | ||||||
Description:
M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 with a robust metal housing and environmental protection rating of IP40 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.
- 1Poles: 2-24pin
- 1Voltage rating: 60-250V
- 1Current rating: 1-7A
- 1Custom cable specification and lengths, molded with PVC, PUR or TPE cable
- 1The panel mount receptacle counter part with PCB contacts or Solder cup
- 1Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Drag China cable options are available
- 1IP67 degree of protection
- 1IP67 degree of protection
- 1Robust metal connector shell
- 1Excellent EMI shielding
| More information about M16 circular connectors may you are concerned: | ||
| HS Code: | 8538900000 | |
| Customzied: | Acceptable | |
| MOQ: | 1pcs for normal type | |
| Package: | Single pcs in PE bag then put all in carton | |
| Single weight: | / | |
| Shipping method: | By express or by sea | |
| Shipping date: | Samples:3-7 working days
Bulk order:Negotiable |
|
| Environmentally friendly: | Yes, CE,RoHs and REACH complianced | |
